AeroNav-1 Dual-Band GNSS (NavIC Supported)

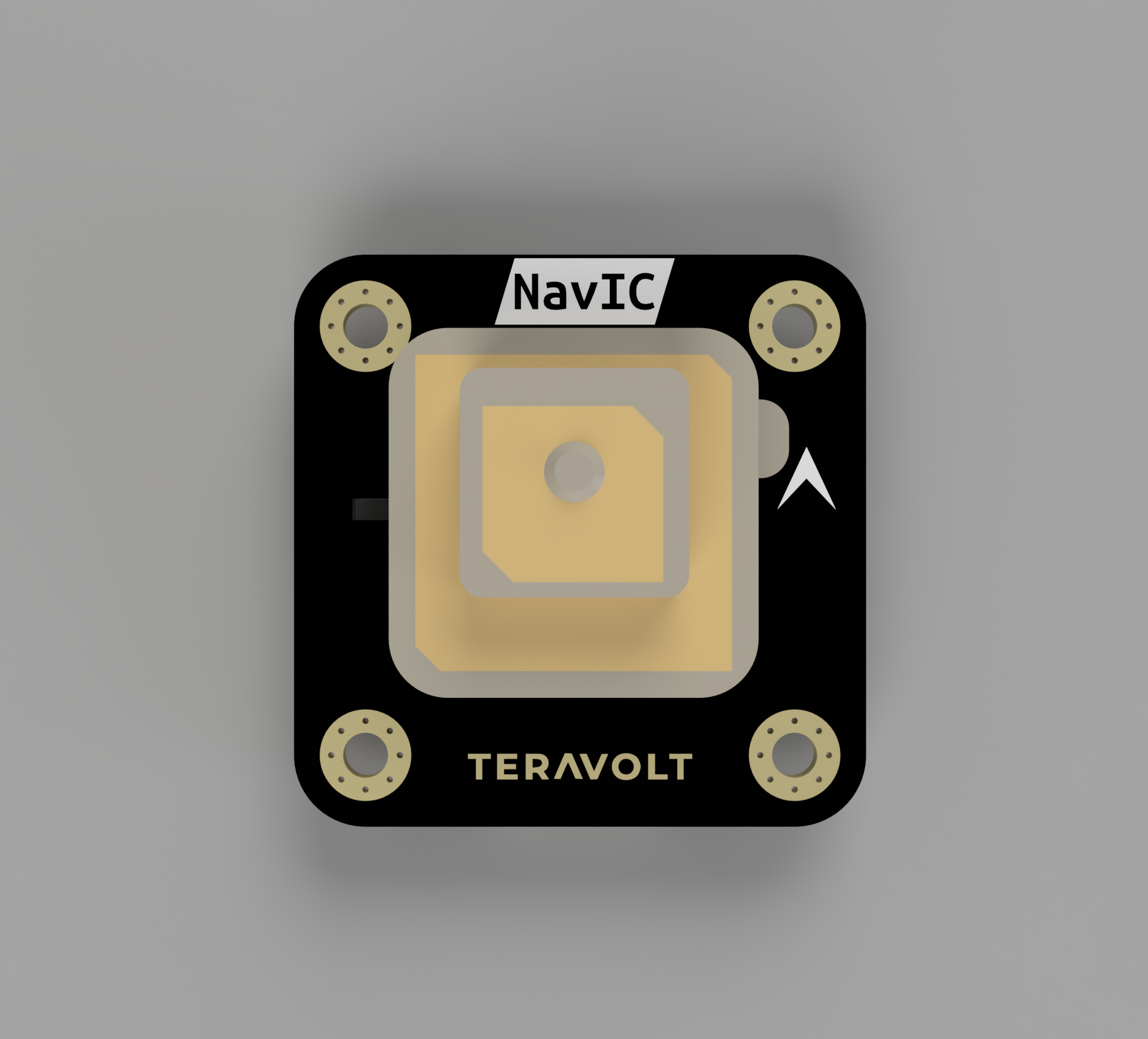

The AeroNav-1 is an industrial-grade, dual-band GNSS module designed and manufactured in India by TeraVolt Labs. It is specifically engineered to support the NavIC (IRNSS) constellation, making it fully compliant with DGCA requirements for indigenous drone manufacturing. It features a high-sensitivity L1 + L5 receiver (Ublox-F10N) and an integrated Bosch BMM350 3-axis magnetometer for precise heading.

../_images/AeroNav-1.png

Key Features

  • NavIC Support: Native support for Indian Regional Navigation Satellite System (IRNSS) on L5 band.

  • Dual-Band Precision: Simultaneously tracks L1 and L5 signals for superior multipath rejection in urban environments.

  • Compass: Integrated Bosch BMM350 (Industrial Grade).

  • Compliance: Suitable for DGCA-compliant drone builds in India.

Specifications

  • GNSS Receiver: Dual-Band L1 + L5

  • Constellations:

    • NavIC (L5)

    • GPS (L1/L5)

    • Galileo (E1/E5)

    • BeiDou (B1/B2a)

    • QZSS (L1/L5)

  • Compass: Bosch BMM350 (I2C)

  • Update Rate: Up to 10Hz

  • Accuracy: < 1.5m CEP (Standalone)

  • Input Voltage: 3.3V - 5.0V

  • Interface: UART (GNSS) + I2C (Compass)

Pinout

The AeroNav-1 uses a standard 6-pin JST-GH connector (Pixhawk Standard) for the primary interface.

../_images/AeroNav-1_3.png
JST-GH 6-Pin Connector

Pin

Name

Direction

Description

1

5V

Input

Power Input (Regulated 5V)

2

RX

Input

UART RX (Connects to Autopilot TX)

3

TX

Output

UART TX (Connects to Autopilot RX)

4

SCL

Bidirectional

I²C Clock for BMM350 (3.3V logic)

5

SDA

Bidirectional

I²C Data for BMM350 (3.3V logic)

6

GND

Input

Ground
