ArduPilot enables the creation and use of trusted, autonomous, unmanned vehicle systems for the peaceful benefit of all. ArduPilot provides a comprehensive suite of tools suitable for almost any vehicle and application. As an open source project, it is constantly evolving based on rapid feedback from a large community of users. The Development Team works with the community and commercial partners to add functionality to ArduPilot that benefits everyone. Although ArduPilot does not manufacture any hardware, ArduPilot firmware works on a wide variety of different hardware to control unmanned vehicles of all types. Coupled with ground control software, unmanned vehicles running ArduPilot can have advanced functionality including real-time communication with operators. ArduPilot has a huge online community dedicated to helping users with questions, problems, and solutions

Copter -- Plane -- Rover -- Sub -- Antenna Tracker

_images/home_ardupilot.jpg

Hardware is the peripheral sensors, controller, and output devices that act as the vehicle’s eyes, ears, brain and arms.

Almost any mobile machine can be transformed into an autonomous vehicle, by simply integrating a small hardware package into it. Hardware packages begin with a controller.

Using inputs from sensors, the controller is able to send outputs to devices such as ESC’s, servos, gimbals and other peripherals.

_images/pixhawk_small.jpg

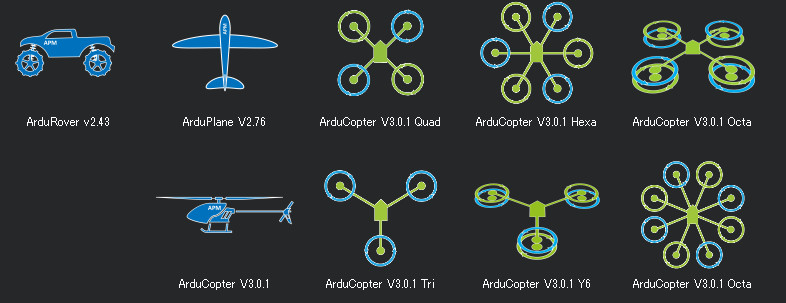

Firmware- is the code running on the controller. You choose the firmware to match your vehicle and mission: Copter, Plane, Rover, Sub, or Antenna Tracker.

The choice is yours – one autopilot for any mission.

_images/firmware_types.jpg

Software is your interface to the controller. Also called a Ground Control Station (GCS), the software can run on PC’s or mobile devices.

A GCS allows users to set-up, configure, test, and tune the vehicle. Advanced packages allow autonomous mission planning, operation, and post-mission analysis.

Mission Planner is a full-featured GCS supported by ArduPilot. It offers point-and-click interaction with your hardware, custom scripting, and simulation.

_images/mission_planner_spline_waypoint.jpg

ArduPilot Documentation

See sidebar for links to ArduPilot documents.

Quickstart

  • Select your vehicle type to the left
  • Select your “AutoPilot Hardware” and “Peripheral Hardware” for your application
  • Follow vehicle’s “First Time Setup” for installing the firmware and Ground Station software, connecting the components, and calibration steps
  • Prepare for “First Flight(/Drive)” completing setup prior to first flight/drive
  • Advanced Configuration offers setup of more advanced features of the firmware and hardware peripherals

Regulations

Every country has different regulations governing the operation of remote controlled and/or autonomous vehicles. This database has country specific information, but it is every operator’s responsibility to be seek out and be aware of local, regional, and federal regulations.

Community

Tip

Keep up with the latest ArduPilot related blogs on ArduPilot.org!

Community is what really sets ArduPilot apart from many other offerings in the market. Here are some of the places you can find ArduPilot users and developers:

Discussion Forum:

_images/ArduPilotDiscuss.png

Facebook ArduPilot group

_images/FaceBookArduPilot.png

Developer Community

Developers Chat Working on the code? Ask questions of the team in Gitter.

Developers Guide All things for those who want to get into the nuts and bolts of ArduPilot development can be found in the Developer Guide.

We have weekly meeting times.

We also have forums

History

The DIYDrones community provided an initial home for ArduPilot. From those hobbyist beginnings, ArduPilot led the professionalisation of the Open Source drone community by creating DroneCode. Since leaving DroneCode in 2016 ArduPilot has grown further to stand as an independent, open, global project. The comprehensive and ever growing list of ArduPilot features are continually born from the needs of the community - be they hobbyists, commercial users, academics, or the largest of enterprises. See the History of ArduPilot for more information.

Features

  • Thorough documentation of the available features backed by a community to help you set up any vehicle to fit your needs
  • Many command modes to fit every type of vehicle: Acro, Stabilize, Loiter, Alt-hold, Return To Launch, Land, Follow Me, GeoFence, etc.
  • Autonomous flight modes that execute fully scripted missions with advanced features.
  • Advanced failsafe options bring peace of mind in the event of lost control signal, low battery conditions, or other system failures.
  • Three Axis camera control and stabilization, shutter control, live video link with programmable on-screen-display
  • Real-time two-way communication between your GCS and controller, including GPS position, battery status, and other live information.
  • Full data logging for comprehensive post mission analysis, with graphing and Google Earth mapping tools
  • Industry leading control algorithms for vehicles of all types, with robust sensor compensation algorithms, filtering and tuning capabilities
  • No dead ends – Advanced users will find endless options for customization and expanded mission capabilities
