AeroAtoms Orbit Base

../_images/orbit-base.png

Overview

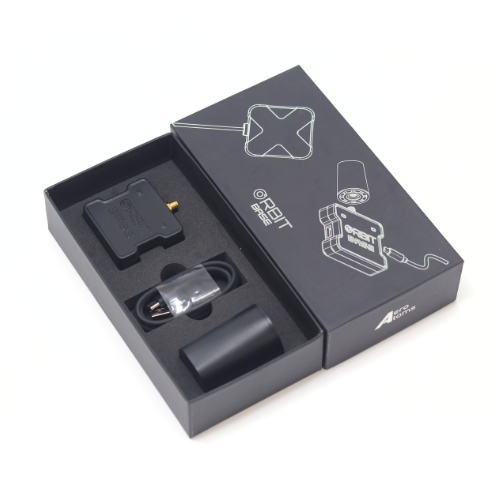

The AeroAtoms Orbit Base is a high-precision RTK base station designed for ArduPilot-compatible systems. It integrates the u-blox ZED-F9P-15B GNSS receiver and provides RTCM 3.3 correction data for centimeter-level RTK positioning.

Orbit Base supports GPS, Galileo, BeiDou, NavIC, and GLONASS constellations and is intended for surveying, mapping, precision agriculture, and UAV RTK applications.

Key Capabilities

  • u-blox ZED-F9P-15B GNSS receiver

  • Multi-band GNSS reception

  • GPS, Galileo, BeiDou, NavIC and GLONASS

  • RTCM 3.3 correction output

  • USB Type-C interface

  • RTK update rate up to 20 Hz

Specifications

GNSS Receiver

u-blox ZED-F9P-15B

Intended Application

RTK Base Station

GNSS Systems

GPS, Galileo, BeiDou, NavIC, GLONASS

GNSS Bands

L1C/A, L5, L1OF, E1B/C, E5a, B1I, B2a

Position Accuracy

0.01 m

RTK Support

RTCM 3.3 Base Station

Navigation Rate

Up to 20 Hz

Communication

USB, UART

Primary Connector

USB Type-C

Antenna Connector

SMA

Supply Voltage

5 V (USB-C)

Status Indicators

Power LED, GPS Lock LED

Dimensions

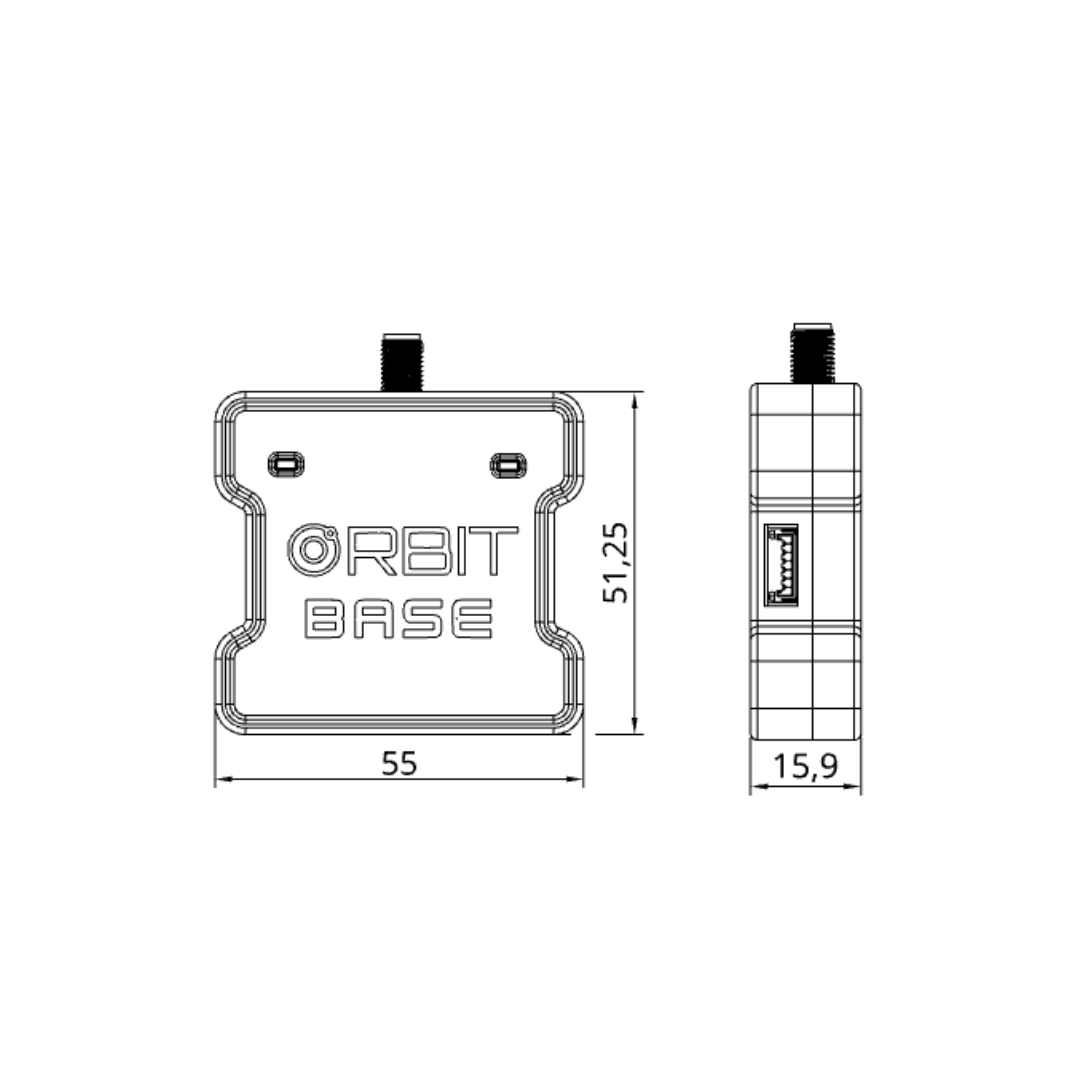

The mechanical dimensions of the AeroAtoms Orbit Base are shown below.

../_images/orbit-base-dimensions.png

Documentation

Complete documentation for the AeroAtoms Orbit Base is available on the AeroAtoms documentation portal.

Official documentation:
