AeroAtoms Orbit Nano X9 / X10¶
Overview¶

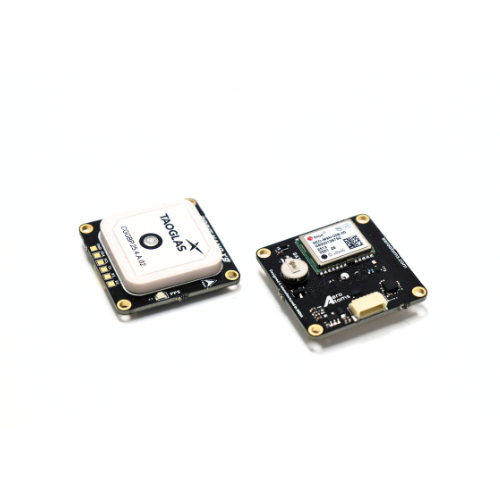

The AeroAtoms Orbit Nano X family consists of ultra-compact GNSS navigation modules designed for ArduPilot-compatible vehicles. Both Orbit Nano X9 and Orbit Nano X10 integrate an IST8310 magnetometer in a compact 28 × 28 mm form factor, providing reliable positioning for multirotors, fixed-wing aircraft, VTOLs, and ground vehicles.
Both modules utilize an integrated LNA + SAW filter for improved signal reception and interference rejection while communicating through a standard UART interface.

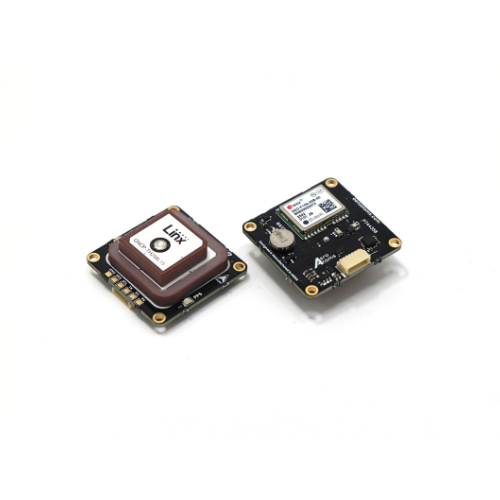

Orbit Nano X10 extends Orbit Nano X9 by incorporating the u-blox NEO-F10N dual-band GNSS receiver with L1/L5 reception and NavIC support, providing improved positioning accuracy and enhanced multipath mitigation.
Key Capabilities¶
Ultra-compact 28 × 28 mm form factor
Integrated IST8310 magnetometer
Integrated LNA + SAW filter
UART communication interface
Navigation update rate up to 10 Hz
Designed for ArduPilot-compatible vehicles
Comparison¶
Feature |
Orbit Nano X9 |
Orbit Nano X10 |
|---|---|---|
GNSS Receiver |
u-blox NEO-M9N |
u-blox NEO-F10N |
Intended Application |
Entry-Level Unmanned Systems Navigation |
Dual-Band Unmanned Systems Navigation |
GNSS Systems |
GPS, Galileo, BeiDou, GLONASS |
GPS, Galileo, BeiDou, QZSS, NavIC |
GNSS Bands |
L1C/A, L1OF, E1B/C, B1I |
L1C/A, L5, E1B/C, E5a, B1C, B2a |
Dual-Band Support |
No |
Yes (L1/L5) |
NavIC Support |
No |
Yes |
RTK Support |
No |
No |
Horizontal Accuracy |
1.5 m CEP (without SBAS) |
1.0 m CEP (with SBAS), 1.5 m CEP (without SBAS) |
Signal Enhancement |
Integrated LNA + SAW Filter |
Integrated LNA + SAW Filter |
Magnetometer |
IST8310 |
IST8310 |
Communication |
UART |
UART |
Navigation Rate |
Up to 10 Hz |
Up to 10 Hz |
Baud Rate |
Configurable (Default: 38400) |
Configurable (Default: 38400) |
Supply Voltage |
5 V |
5 V |
Current Consumption |
<50 mA |
<60 mA |
Dimensions |
28 × 28 × 9.6 mm |
28 × 28 × 13.46 mm |
Weight |
20.2 g |
23.2 g |
Dimensions¶

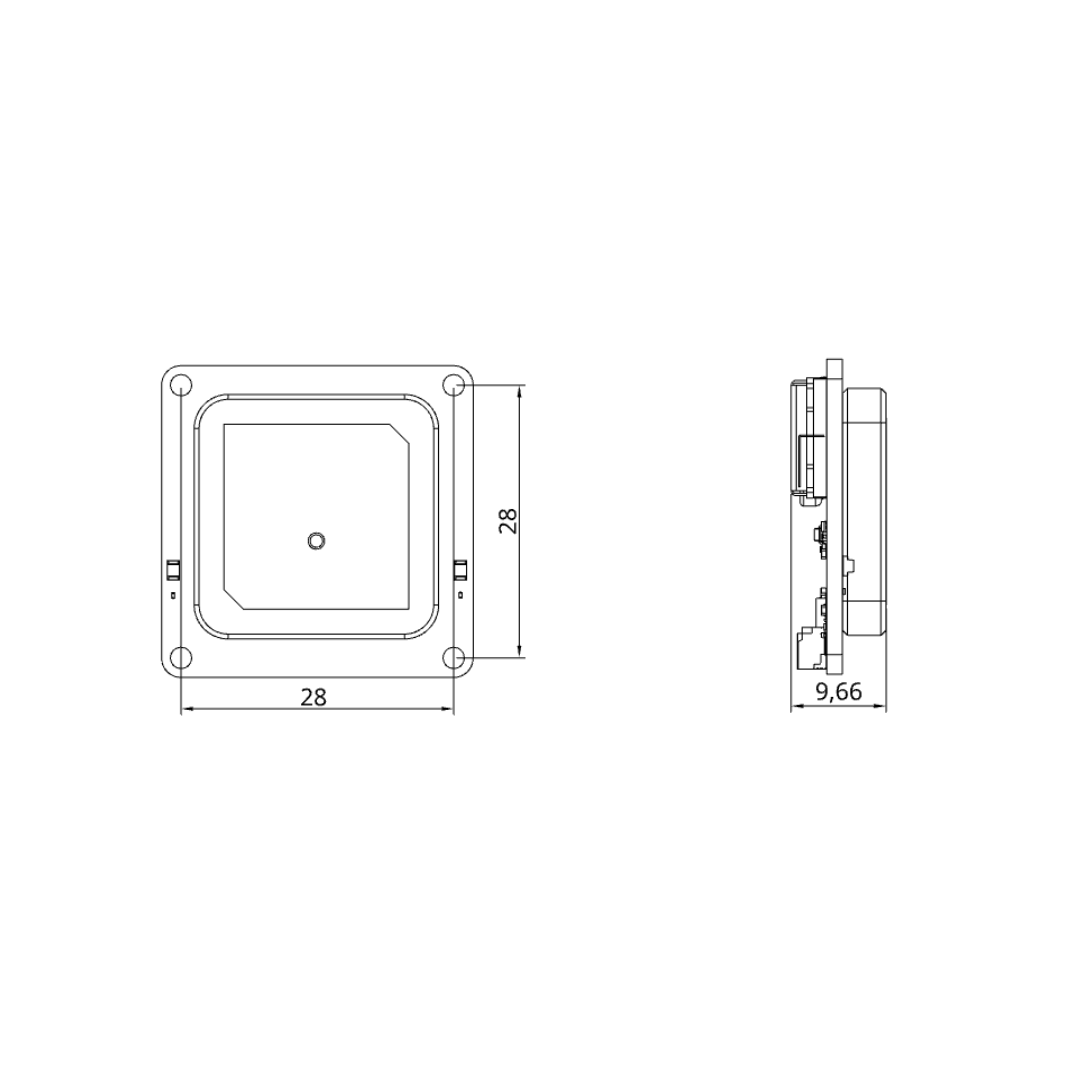

Orbit Nano X9

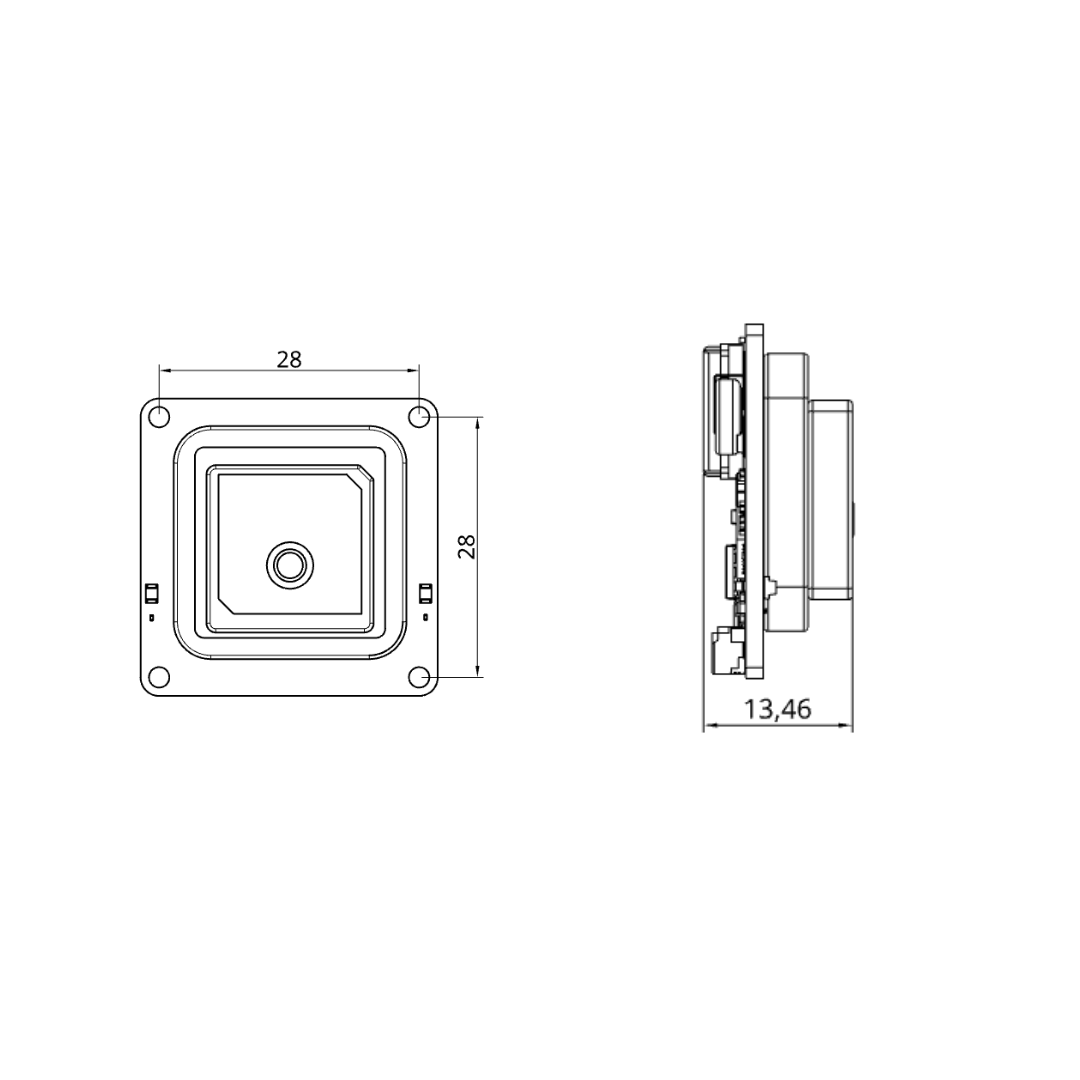

Orbit Nano X10
Documentation¶
Complete documentation for the AeroAtoms Orbit Nano X family is available on the AeroAtoms documentation portal.
Official documentation:
