Rover: waypoint navigation overview

This page provides an overview of how Rover drives from one waypoint to the next in the autonomous modes (Auto, Guided, RTL and SmartRTL).

For the user-facing behaviour of S-Curves and the position controller, and for how to tune them, see Tuning Navigation.

Libraries involved

  • AR_WPNav plans the path to the destination and outputs a desired speed and turn rate

  • AR_WPNav_OA extends AR_WPNav with object avoidance path planning, and is the class Rover actually instantiates

  • AR_PivotTurn handles pivot (point) turns for vehicles that can turn on the spot

  • AR_AttitudeControl holds the lower level speed and turn rate controllers

  • AP_MotorsUGV converts the steering and throttle demands into motor outputs

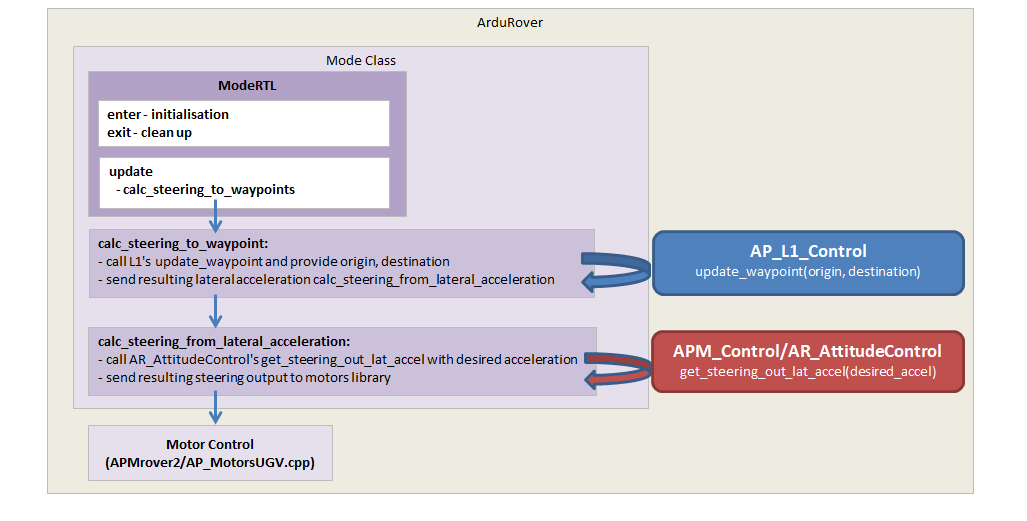

Code flow

  • On every iteration of the main loop a call is made to the active mode’s update() method. While in Auto, Guided, RTL and SmartRTL, this calls into the Mode class’s navigate_to_waypoint() method in Rover/mode.cpp.

  • navigate_to_waypoint() applies the pilot’s speed nudge and then calls AR_WPNav::update().

  • AR_WPNav::update() advances the target along the path and then updates the position controller, which produces a desired speed and a desired turn rate.

  • The desired speed is passed to calc_throttle(), which uses AR_AttitudeControl’s speed controller to produce a throttle output.

  • The desired turn rate is passed to calc_steering_from_turn_rate(), which uses AR_AttitudeControl’s get_steering_out_rate() to produce a steering output.

  • Both outputs are sent to AP_MotorsUGV using set_throttle() and set_steering().

Sailboats are a special case: when tacking upwind the desired heading comes from the Sailboat library and steering is calculated with calc_steering_to_heading() instead of the turn rate above.

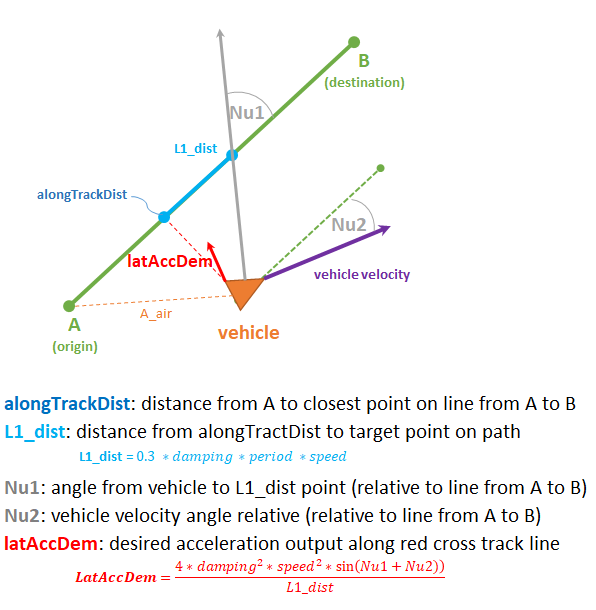

The two navigation controller types

AR_WPNav can advance its target in one of two ways, selected by which method the vehicle code used to set the destination:

  • S-Curve (NAV_SCURVE) is used when the destination is set with set_desired_location(), as Auto, RTL and SmartRTL do. The path is built as a jerk-limited S-Curve, and successive legs are blended so the vehicle can round a corner without stopping. This is the normal waypoint case.

  • Position controller input shaping (NAV_PSC_INPUT_SHAPING) is used when the destination is set with set_desired_location_expect_fast_update(), for callers such as Guided that update the target rapidly. Here the target is fed straight into the position controller’s input shaping rather than being planned as a curve ahead of time.

While a pivot turn is active, neither is advanced — the vehicle turns on the spot first and then resumes following the path.

Parameters

The path AR_WPNav produces is shaped by WP_SPEED, WP_RADIUS, WP_ACCEL and WP_JERK, along with the vehicle’s acceleration and turn limits. Tuning Navigation explains how these interact and how to set them.
