StrobeIT Pro - Professional UAV Strobe

The StrobeIT Pro is the industrial-grade evolution of the StrobeIT, designed by TeraVolt Labs for heavy-lift and long-range UAVs. It features enhanced brightness, ruggedized mounting.

../_images/StrobeIT_PRO_1.png

Key Features

  • Extreme Brightness: Dual-emitter / High-power configuration for maximum visibility (>3km).

  • Robust Design: Encased/Potting options for weather resistance.

  • Dual Control: PWM and Lua Scripting support compatible with ArduPilot.

Specifications

  • Input Voltage: 5V

  • Power Output: 6W MAX

  • Signal Input: PWM (1000–2000µs)

  • Dimensions: 57 x 47mm

  • Mounting: Standard M4 Mounting pattern

  • Weight: 5g

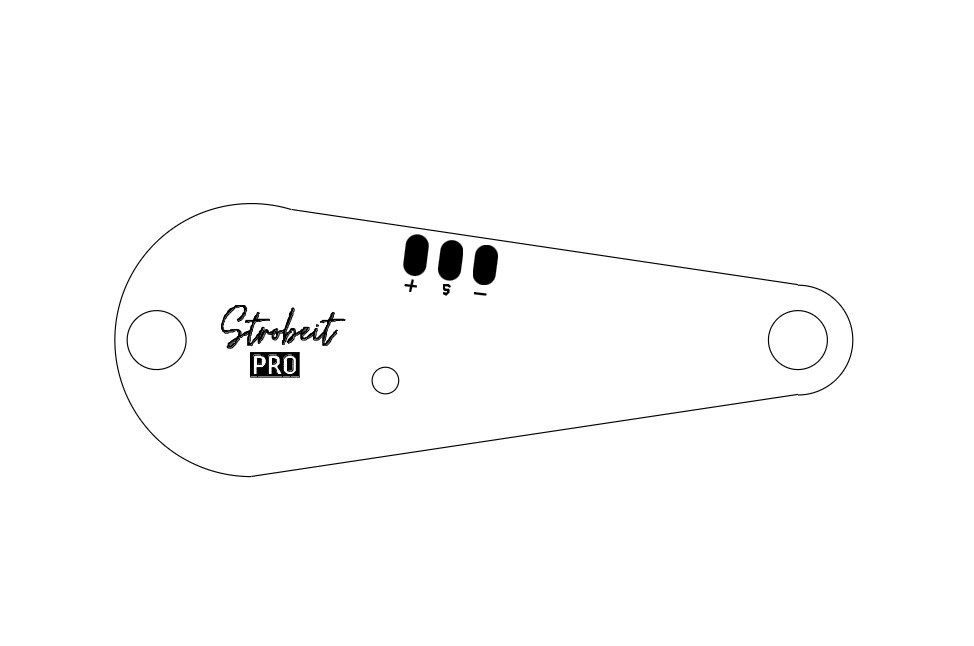

Pinout

../_images/StrobeIT_PRO_4.png

  • VCC: Power Input

  • Signal: PWM Input

  • GND: Ground

Operation Modes

The StrobeIT Pro utilizes standard PWM pulse widths to trigger different behaviors:

PWM Control Logic

PWM Input

White LED Pattern

Color

1000 µs

Solid ON

Green/Red

1200 µs

Blink once (200ms), pause 1.5s

Green/Red

1500 µs

Double Blink (2x), pause 1.5s

Green/Red

1800 µs

Rapid Flicker (Strobe)

Green/Red

2000 µs

Strobe OFF

Green/Red
