AeroAtoms Orbit EVO (UART / DroneCAN)¶
Overview¶

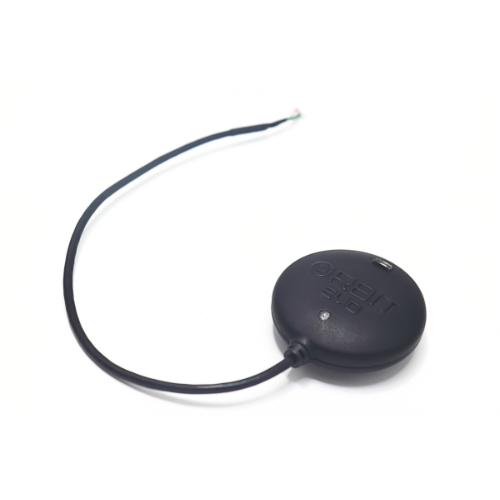

The AeroAtoms Orbit EVO is a professional GNSS navigation module designed for ArduPilot-compatible vehicles. It integrates the u-blox NEO-M9N GNSS receiver, IST8310 magnetometer, safety switch, and buzzer into a compact navigation solution for multirotors, fixed-wing aircraft, VTOLs, and ground vehicles.
Orbit EVO supports concurrent reception of GPS, Galileo, BeiDou, and GLONASS constellations while utilizing an integrated LNA and SAW filter for improved signal reception and interference rejection. The module is available in both UART and DroneCAN variants.
Key Capabilities¶
u-blox NEO-M9N multi-constellation GNSS receiver
Concurrent reception of GPS, Galileo, BeiDou and GLONASS
Integrated IST8310 magnetometer
Integrated safety switch
Integrated buzzer
LNA + SAW filter for enhanced signal reception
Available in UART and DroneCAN variants
Navigation update rate up to 10 Hz
Specifications¶
GNSS Receiver |
u-blox NEO-M9N |
Intended Application |
Professional Unmanned Systems Navigation |
GNSS Systems |
GPS, Galileo, BeiDou, GLONASS |
GNSS Bands |
L1C/A, L1OF, E1B/C, B1I |
RTK Support |
No (Standard Positioning) |
Horizontal Accuracy |
1.5 m CEP (without SBAS) |
Signal Enhancement |
LNA + SAW Filter |
Magnetometer |
IST8310 |
Communication |
UART or DroneCAN |
Navigation Rate |
Up to 10 Hz |
Supply Voltage |
5 V |
Current Consumption |
<80 mA |
Safety Switch |
Integrated |
Buzzer |
Integrated |
Dimensions |
Ø56 × 19.4 mm |
Weight |
35.2 g |
Dimensions¶

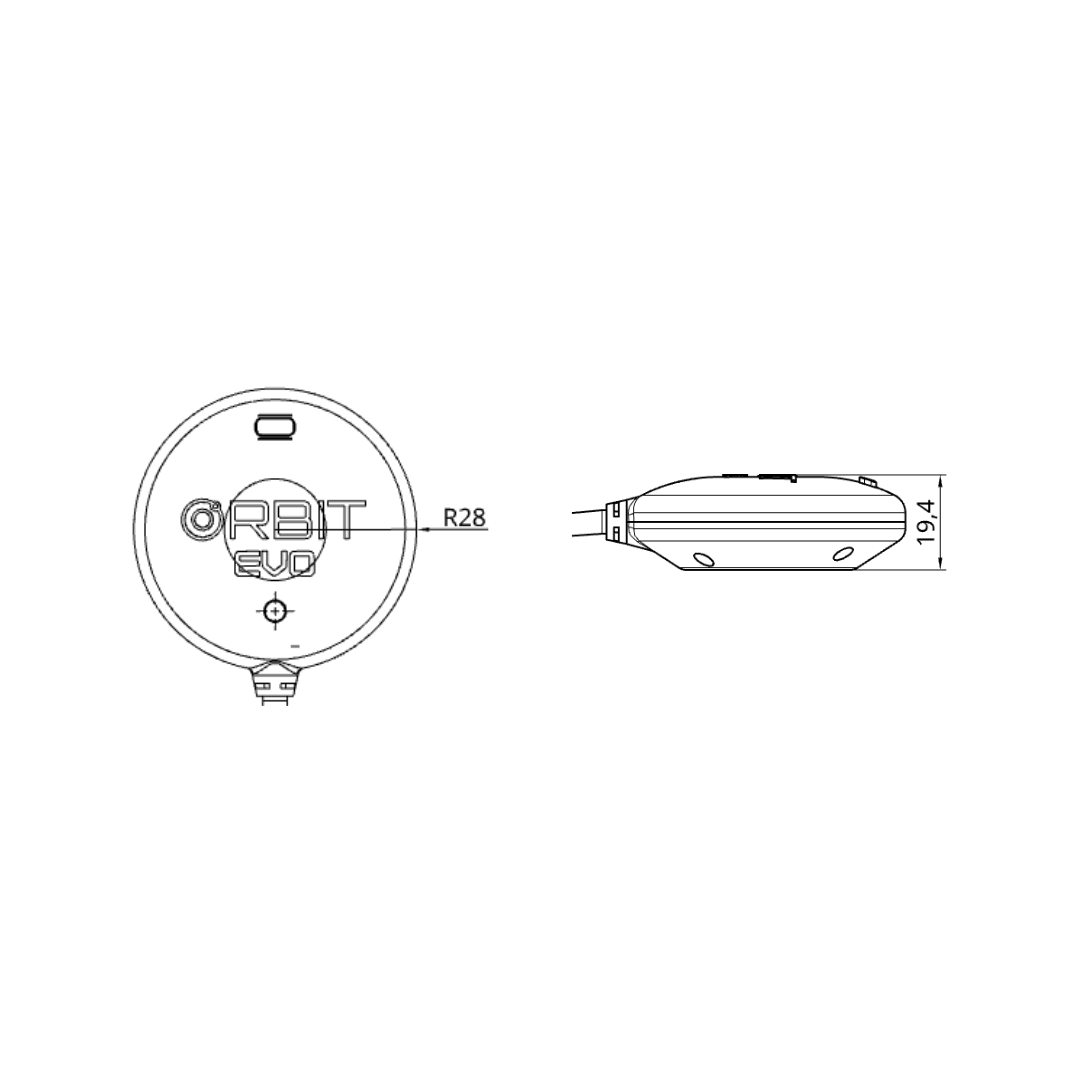

The mechanical dimensions of the AeroAtoms Orbit EVO are shown below.
Documentation¶
Complete documentation for the AeroAtoms Orbit EVO is available on the AeroAtoms documentation portal.
The documentation includes:
Product Overview
Specifications
Mechanical Dimensions
User Guide
Firmware Updates
Official documentation:
