TeraVolt AeroTel 2.4 - Telemetry Radio

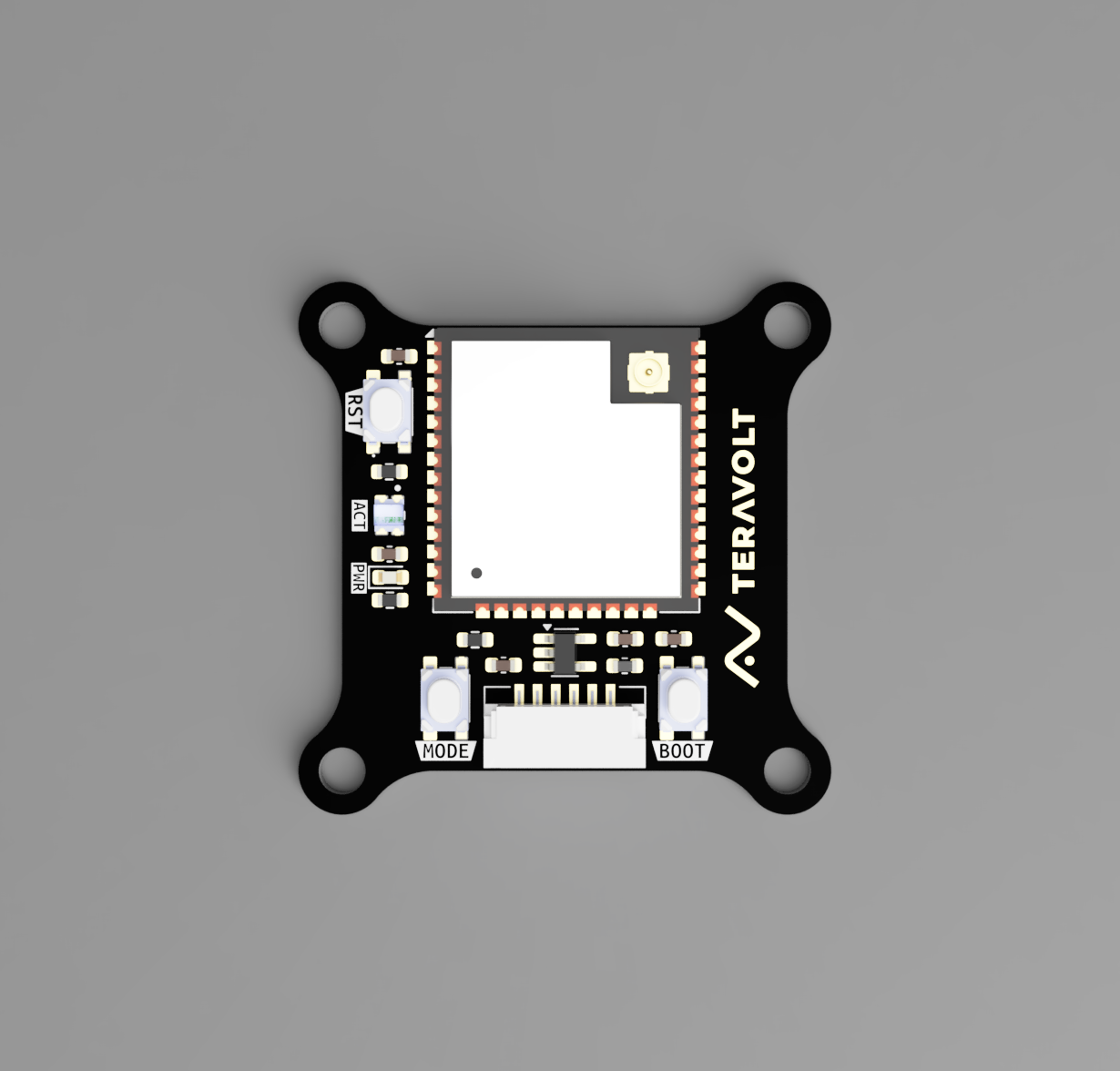

The AeroTel 2.4 by TeraVolt Labs is a professional, plug-and-play telemetry module powered by the industry-proven DroneBridge communication core.

While standard DroneBridge boards require manual wiring and soldering, the AeroTel 2.4 is engineered specifically for ArduPilot integration. It features a custom “mounting-friendly” PCB, pre-installed JST-GH connectors matching the Pixhawk standard, and dedicated onboard controls for mode switching.

../_images/AeroTel-24_1.png

Key Features

  • Plug & Play: Pre-installed JST-GH 6-pin connector (Direct fit for Pixhawk/Cube TELEM ports).

  • Hardware Mode Button: Dedicated button to cycle between WiFi AP, WiFi Client, and ESP-NOW Long Range modes (no web interface required).

  • Smart Status LED: Onboard multi-color LED provides instant visual feedback on connection status and operating mode.

  • OTA Firmware Updates: Native support for wireless firmware updates via WiFi.

  • Mounting Friendly: Custom form factor with standard M3 mounting holes for secure chassis installation.

  • Security: AES-256 encryption for secure data links.

Specifications

  • Frequency: 2.4 GHz (WiFi-6 / ESP-NOW)

  • Input Voltage: 5V DC

  • Connector: JST-GH 6-Pin (Standard Telemetry)

  • Range: > 300m (Standard WiFi) / > 1km (ESP-NOW Long Range)

  • Protocol: MAVLink / Transparent Serial Bridge

  • Dimensions: 32mm x 32mm

  • Weight: 10g

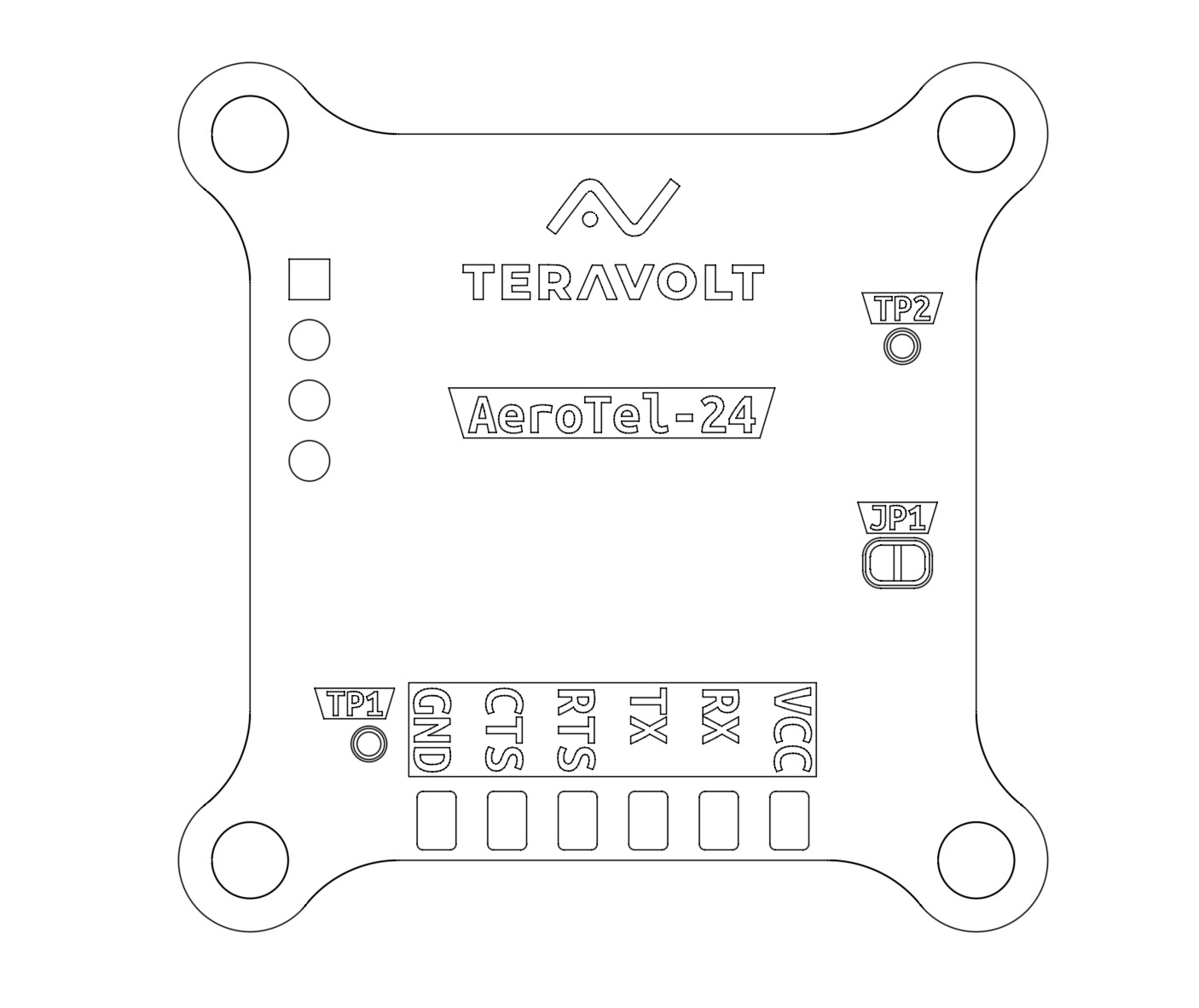

Pinout

../_images/AeroTel-24_5.jpg

The module utilizes the standard ArduPilot Telemetry pinout:

  • VCC: 5V Input

  • TX: Connect to Autopilot RX

  • RX: Connect to Autopilot TX

  • CTS: Clear to Send (Flow Control)

  • RTS: Request to Send (Flow Control)

  • GND: Ground

Status LED & Controls

Mode Selection Button: Press the Mode button to cycle through operating modes:

  1. Access Point (AP): Creates a WiFi Hotspot (Default).

  2. Client Mode: Connects to an existing router.

  3. ESP-NOW: Long-range bridge mode (Requires second unit).

LED Indicators:

  • Blink Green: WiFi AP Mode (Connected)

  • Blink Yellow: Client Mode (Connected to router)

  • Fast Blink Red: Module Disconnected

Configuration

If you set these parameters, AeroTel-24 will work out of the box. Connect AeroTel to any available SERIAL port (e.g., SERIAL2) and configure the following parameters in Mission Planner: The module is plug and play and does not require any configuration changes via web interface.
