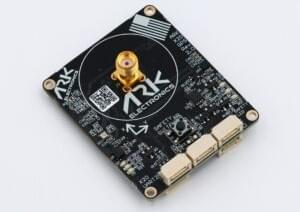

ARK X20 RTK GPS

Made in the USA and NDAA Compliant Dronecan RTK GPS, U-Blox X20, magnetometer, barometer, IMU, Safety Switch Module and buzzer module.

Specifications

• Sensors

  • u-blox ZED-X20P all-band high precision GNSS module

  • All-band all constellation GNSS receiver

  • Best position accuracy and availability in different environments

  • RTK, PPP-RTK and PPP algorithms expanding the limits of performance

  • Highest quality GNSS raw data

  • u-blox end-to-end hardened security

  • 25Hz update rate

  • ST IIS2MDC Magnetometer

  • Bosch BMP390 Barometer

  • Invensense ICM-42688-P 6-Axis IMU

• Microcontroller

  • STM32F412VGH6 MCU

• Connections

  • Two Pixhawk Standard CAN Connectors

  • 4 Pin JST GH

  • X20 “UART 2” Connector

  • 4 Pin JST GH (TX, RX, PPS, GND)

  • I2C Expansion Connector

  • 4 Pin JST-GH (5.0V, SCL, SDA, GND)

  • Pixhawk Standard Debug Connector

  • 6 Pin JST SH

• Power Requirements

  • 5V

  • 144mA Average

  • 157mA Max

• Other

  • USA Built

  • NDAA Compliant

  • 4 Pin Pixhawk Standard CAN Cable

  • Full-Frequency Helical GPS Antenna

  • LED Indicators

  • GPS Fix

  • RTK Status

  • RGB System Status

  • Safety LED
