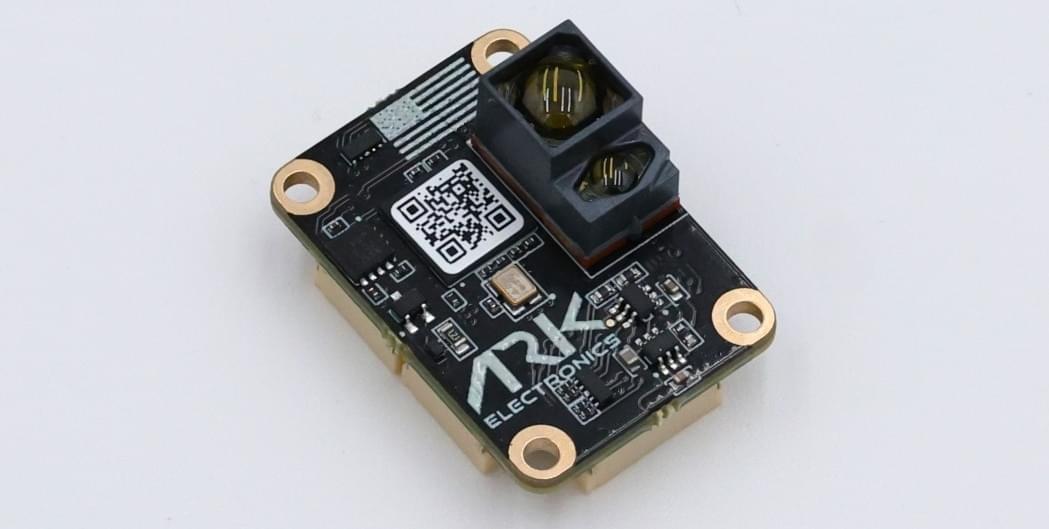

The ARK DIST MR ARK DIST MR is a low range, open source, DroneCAN rangefinder. It has an approximate range of between 8cm to 50m.
Specifications¶
Sensors
Integrated 850 nm laser light source
Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels
Typical distance range up to 50m
Operation of up to 200k Lux ambient light
Works well on all surface conditions
Transmitter beam of 2° x 2° to illuminate between 1 and 3 pixels
Reference Pixel for system health monitoring
Connections
Two Pixhawk Standard CAN Connectors
4 Pin JST GH
Pixhawk Standard Debug Connector
6 Pin JST SH
Pixhawk Standard UART Connector
6 Pin JST SH
Power Requirements
5V
84mA Average
86mA Max
Other
USA Built
FCC Compliant
4 Pin Pixhawk Standard CAN Cable
LED Indicators
Where to Buy¶
The sensor is available from ARK Electronics.
Connection to Autopilot¶
The ARK DIST MR is connected to the CAN bus using a Pixhawk standard 4 pin JST GH cable.
Multiple sensors can be connected by plugging additional sensors into the ARK DIST MR’s second CAN connector.
Connection to Autopilot CAN:
Set RNGFND1_TYPE = 24 (DroneCAN)
Set RNGFND1_MIN = 0.08 to set range finder’s minimum range to 8cm
Set RNGFND1_MAX = 50 to set range finder’s maximum range to 50m
Connection to Autopilot with UART/MAVLink (SERIAL1 is shown as an example):
Set RNGFND1_TYPE = 10 (MAVLink)
Set RNGFND1_MIN = 0.08 to set range finder’s minimum range to 8cm
Set RNGFND1_MAX = 50 to set range finder’s maximum range to 50m
Set SERIAL1_BAUD = 115 to set the baud rate to 115200
Set SERIAL1_PROTOCOL = 2 (MAVLink2)
