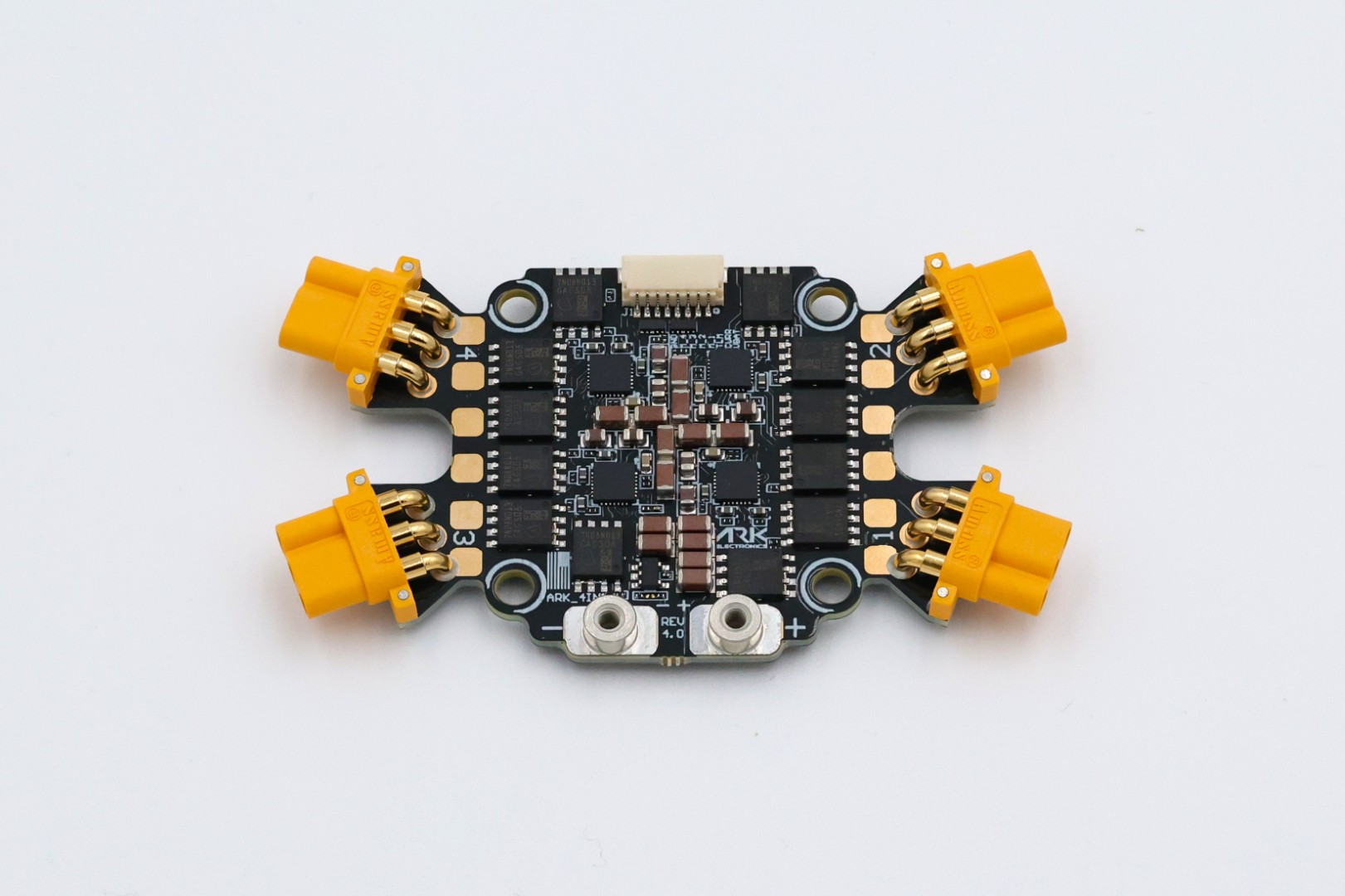

ARK 4IN1 ESC CONS

../_images/ark_4in1_esc_con.jpg

NDAA compliant, made in the USA, DIU Blue Framework listed, 4 in 1 electronic speed controller running open source AM32 firmware. No soldering required with built in motor and battery connectors.

Specifications

  • Features

    • Battery Voltage: 3-8s

    • MR30 Connector Limit Per Motor: 30A Continuous, 40A Burst

    • Current Rating: 50A Continuous, 75A Burst

    • Microcontroller: STM32F0

    • Firmware: AM32 Firmware

    • Features: Onboard Current Sensor, Serial Telemetry

  • Connections

    • Four MR30 Motor Connectors

    • Two Pixhawk Standard CAN Connectors

    • 8 Pin JST-SH Input/Output Connector

    • Battery Output

    • Current

    • Telemetry

    • Motor 1

    • Motor 2

    • Motor 3

    • Motor 4

    • Ground

    • 10 Pin JST-SH Debug Connector

    • 3.3V

    • SWDIO Motor 1, SWCLK Motor 1

    • SWDIO Motor 2, SWCLK Motor 2

    • SWDIO Motor 3, SWCLK Motor 3

    • SWDIO Motor 4, SWCLK Motor 4

    • Ground

  • M2.5 Battery Input Threaded Standoffs - Two 150mm 10AWG Power Cables Terminated with M2.5 Ring Terminals Included

  • Other

    • USA Built

    • NDAA compliant

    • DIU Blue Framework Listed

  • Additional Information

    • Size: 77.00mm x 42.00mm x 9.43mm

    • Mounting Pattern: 30.5mm

    • Weight: 24g
