AeroAtoms Orbit SAM¶
Overview¶

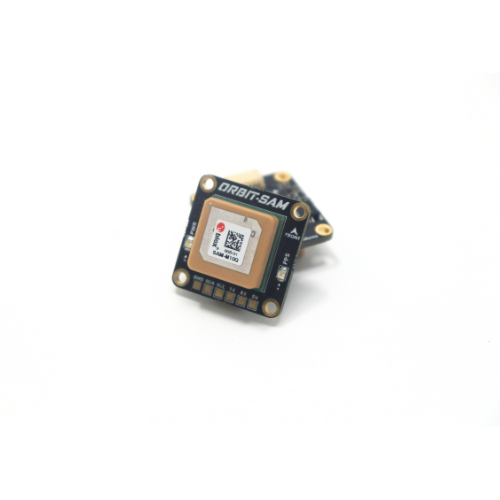

The AeroAtoms Orbit SAM is an ultra-compact GNSS module designed for ArduPilot-compatible vehicles. It integrates the u-blox SAM-M10Q GNSS receiver with an onboard IST8310 magnetometer, providing reliable positioning and heading information for multirotors, fixed-wing aircraft, VTOLs, and ground vehicles.
Orbit SAM supports concurrent reception of GPS, Galileo, BeiDou, and GLONASS constellations while maintaining very low power consumption, making it suitable for compact and battery-powered unmanned systems.
Key Capabilities¶
Ultra-compact 20 × 20 mm form factor
u-blox SAM-M10Q multi-constellation GNSS receiver
Concurrent reception of GPS, Galileo, BeiDou and GLONASS
Integrated IST8310 magnetometer
UART communication interface
Navigation update rate up to 5 Hz
Low power consumption (<40 mA)
Specifications¶
GNSS Receiver |
u-blox SAM-M10Q |
Intended Application |
Unmanned Systems Navigation |
GNSS Systems |
GPS, Galileo, BeiDou, GLONASS |
GNSS Bands |
L1C/A, L1OF, E1B/C, B1I |
RTK Support |
No (Standard Positioning) |
Horizontal Accuracy |
1.5 m CEP (without SBAS) |
Magnetometer |
IST8310 |
Communication |
UART |
Navigation Rate |
Up to 5 Hz |
Baud Rate |
Configurable (Default: 38400) |
Supply Voltage |
5 V |
Current Consumption |
<40 mA |
Dimensions |
20 × 20 × 11.45 mm |
Weight |
9.1 g |

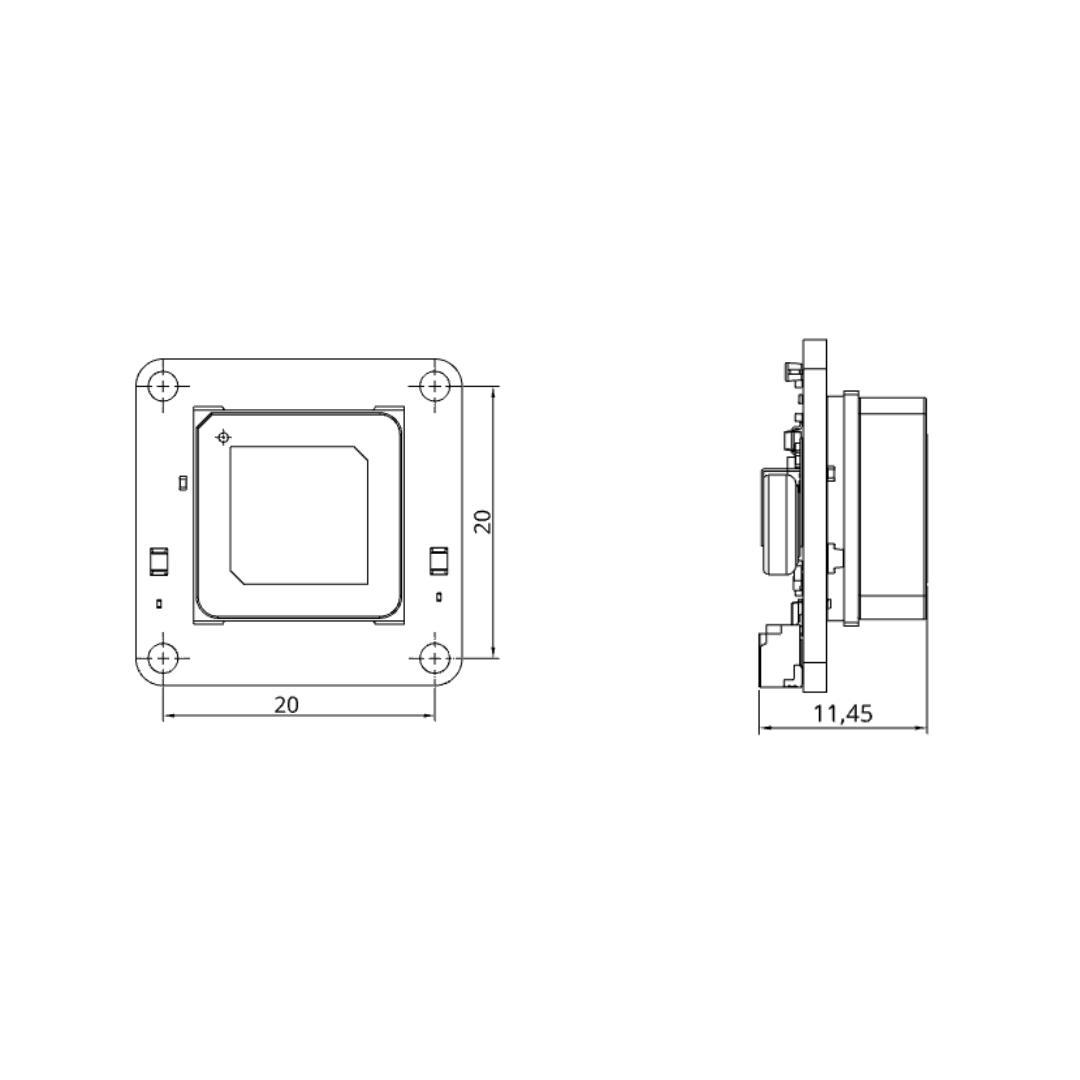

Dimensions¶
Documentation¶
Complete documentation for the AeroAtoms Orbit SAM is available on the AeroAtoms documentation portal.
The documentation includes:
Product Overview
Specifications
Mechanical Dimensions
User Guide
Firmware Updates
Official documentation:
