AeroAtoms Orbit Neo / Neo Plus RTK¶
Overview¶

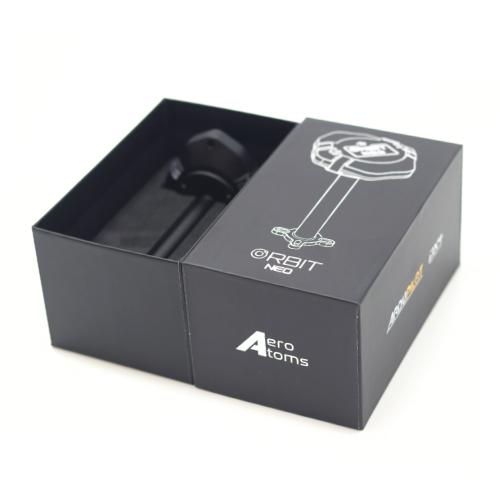

The AeroAtoms Orbit Neo family consists of high-precision DroneCAN GNSS modules designed for ArduPilot-compatible vehicles. Both Orbit Neo and Orbit Neo Plus integrate the u-blox ZED-F9P multi-band GNSS receiver with onboard magnetometer and barometer, providing centimeter-level RTK positioning for multirotors, fixed-wing aircraft, VTOLs, and ground vehicles.

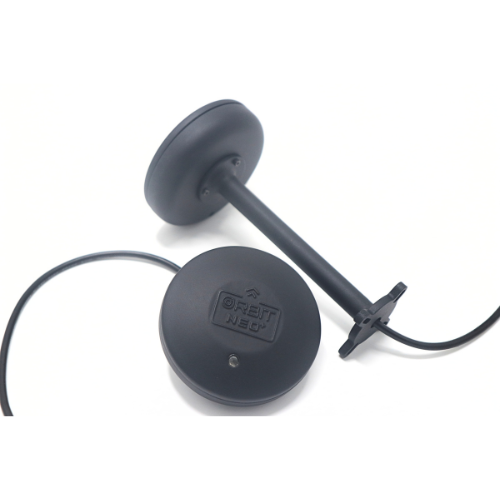

Orbit Neo Plus extends the Orbit Neo platform by adding Moving Baseline support for dual-antenna heading, an STM32H743 microcontroller, integrated LNA + SAW filtering, EMI shielding, and an upgraded barometer, providing improved heading estimation and GNSS performance in demanding RF environments.
Key Capabilities¶
u-blox ZED-F9P multi-band RTK GNSS receiver
Centimeter-level RTK positioning
DroneCAN communication
Concurrent reception of GPS, Galileo, BeiDou, NavIC and GLONASS
Integrated IST8310 magnetometer
Integrated barometer
Navigation update rate up to 10 Hz
Comparison¶
Feature |
Orbit Neo |
Orbit Neo Plus |
|---|---|---|
GNSS Receiver |
u-blox ZED-F9P-15B |
u-blox ZED-F9P-15B |
MCU |
STM32G474 |
STM32H743 |
RTK Support |
Yes |
Yes |
Moving Baseline |
No |
Yes |
GNSS Systems |
GPS, Galileo, BeiDou, NavIC, GLONASS |
GPS, Galileo, BeiDou, NavIC, GLONASS |
GNSS Bands |
L1C/A, L5, L1OF, E1B/C, E5a, B1I, B2a |
L1C/A, L5, L1OF, E1B/C, E5a, B1I, B2a |
LNA + SAW Filter |
No |
Yes |
EMI Shielding |
No |
Yes |
Magnetometer |
IST8310 |
IST8310 |
Barometer |
ICP-20100 |
DPS368XTSA1 |
Communication |
DroneCAN |
DroneCAN |
Navigation Rate |
Up to 10 Hz |
Up to 10 Hz |
CAN Baud Rate |
Up to 8 Mbit/s |
Up to 8 Mbit/s |
Supply Voltage |
5 V |
5 V |
Current Consumption |
180 mA |
150 mA |
Dimensions¶

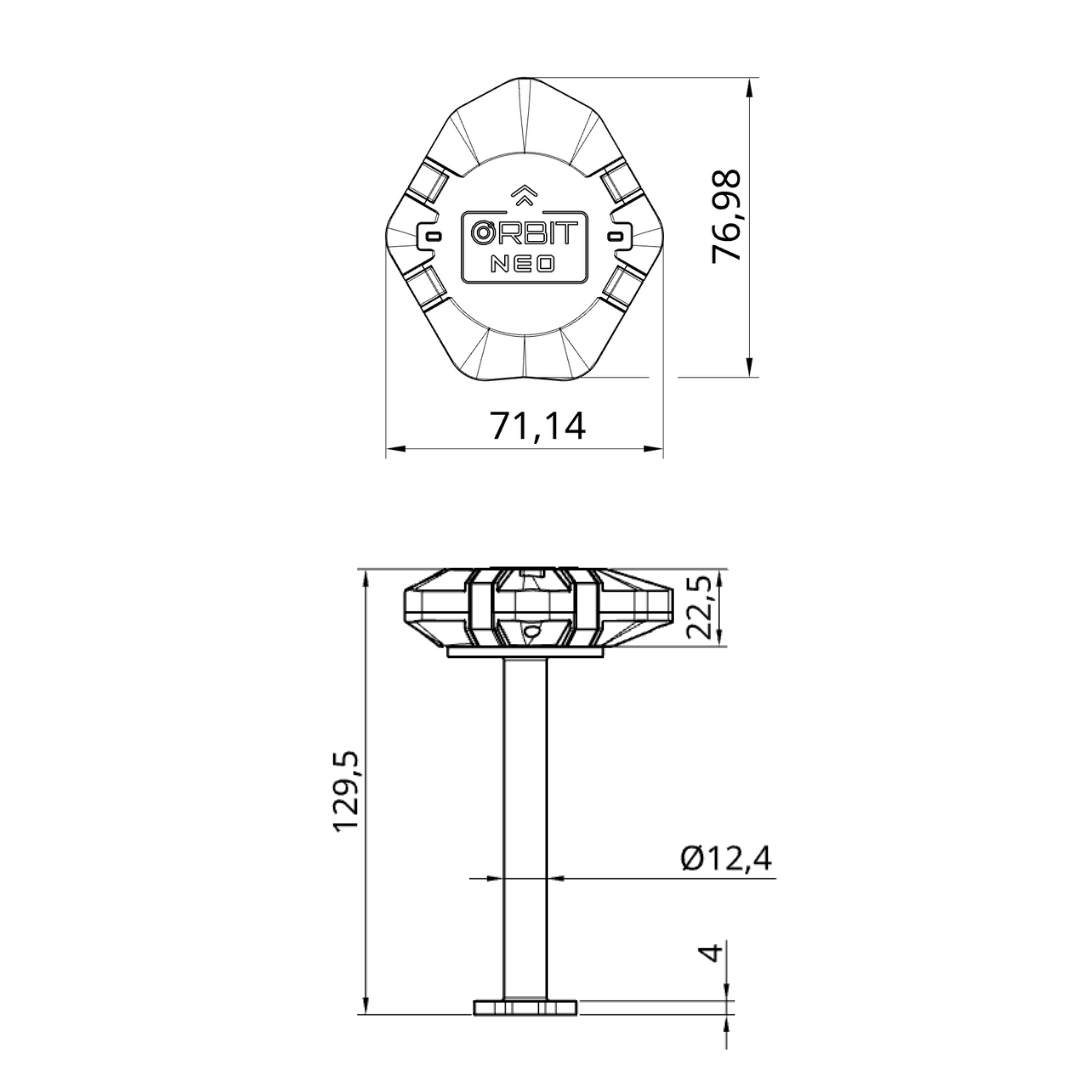

Orbit Neo

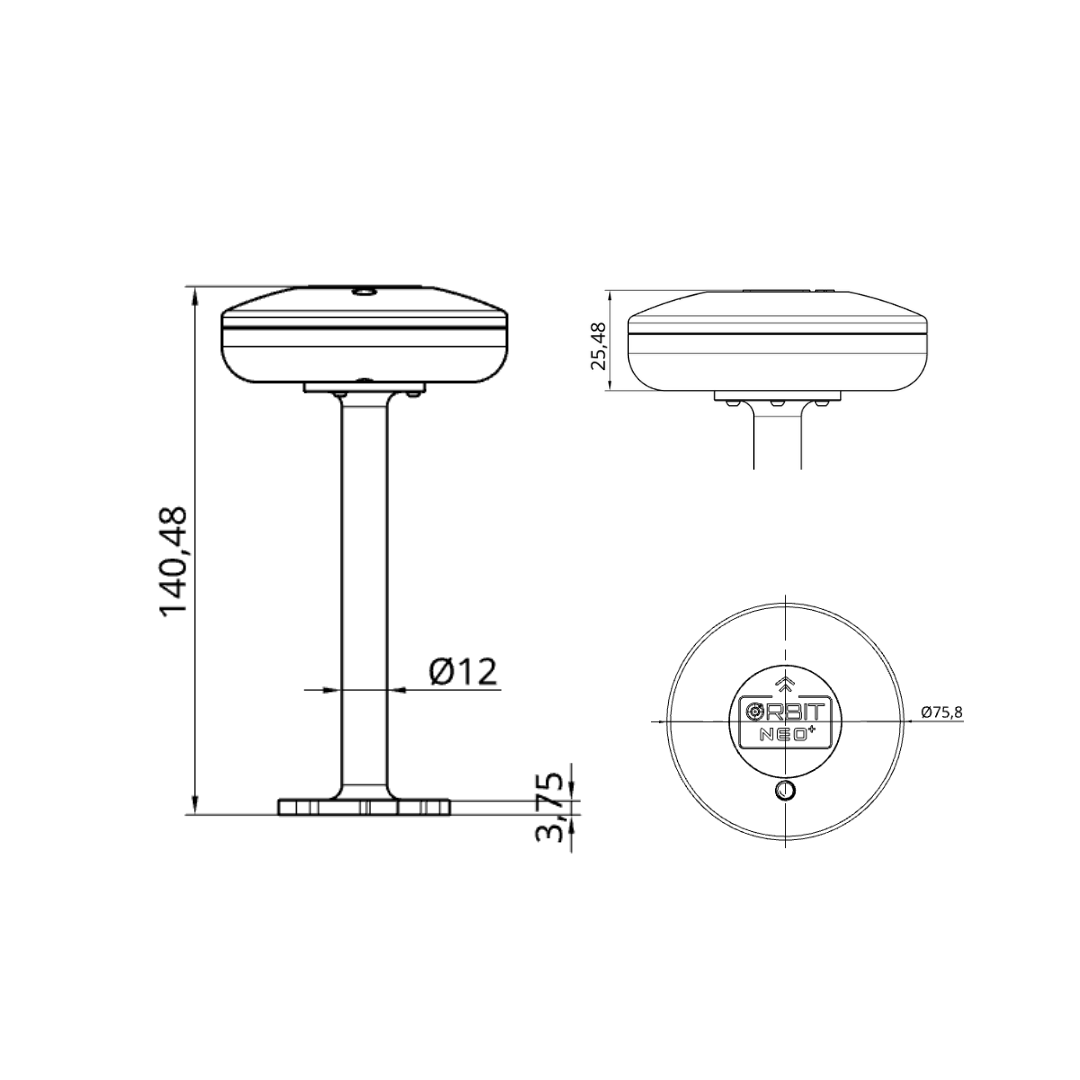

Orbit Neo Plus
Documentation¶
Complete documentation for the AeroAtoms Orbit Neo family is available on the AeroAtoms documentation portal.
Official documentation:
