Code Overview (Copter)ΒΆ

The code is made up of the main Copter code which resides in it’s own directory, and the libraries which are shared with Plane and Rover.

Below is a highlevel view of the ardupilot architecture.

../_images/ArduPilot_HighLevelArchecture.png

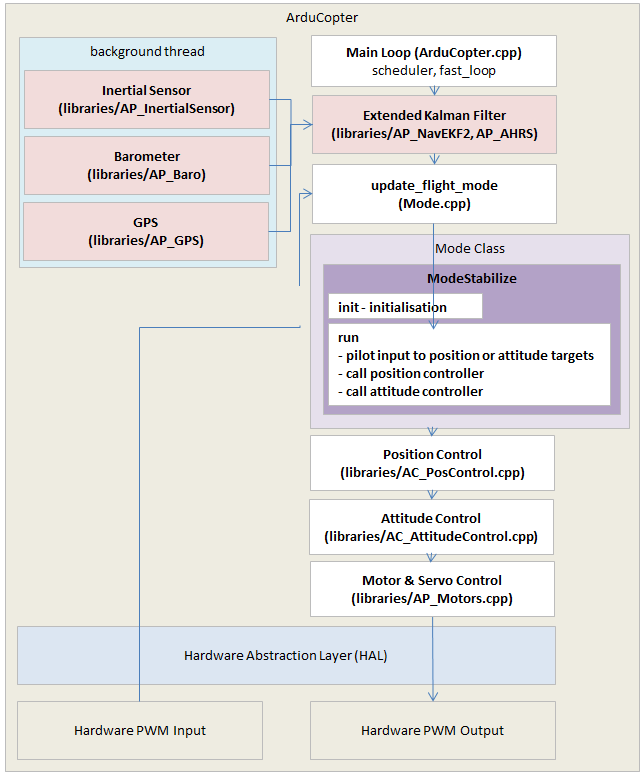

Below is a more zoomed in view (as compared to the above diagram) of the architecture.

../_images/copter-architecture.png

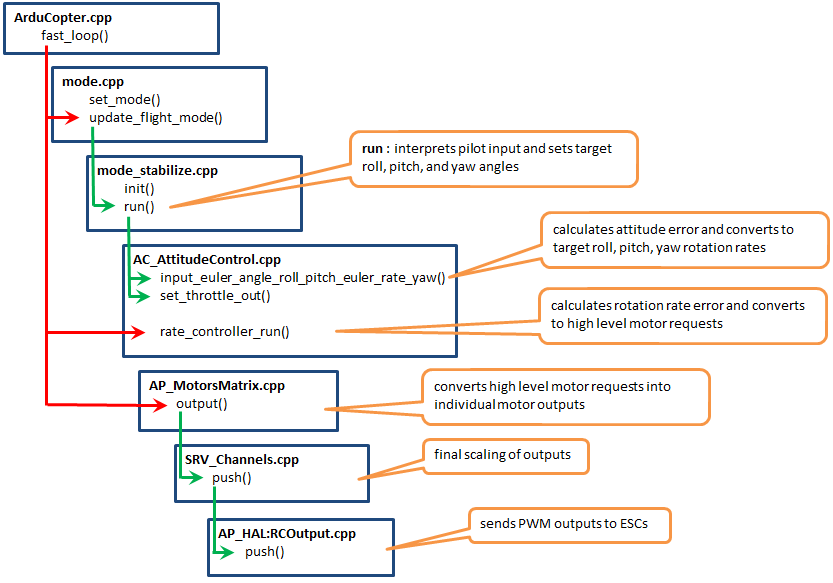

The image below shows the architecture of manual modes (i.e. Stabilize, Acro, Drift)

../_images/AC_CodeOverview_ManualFlightMode.png

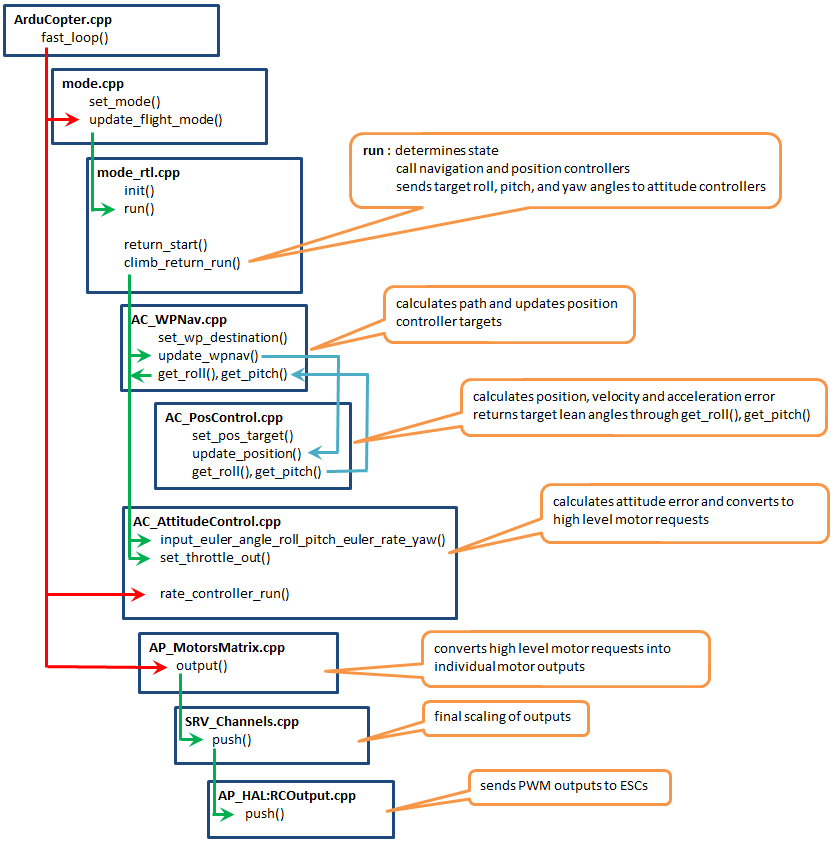

The image below shows the architecture of autonomous modes (i.e. RTL, Guided, Auto)

../_images/AC_CodeOverview_AutoFlightModes.png
