Debugging with GDB on linux

This page describes how to setup GDB on Linux to debug issues with ArduPilot with SITL.

Introduction

This guide assumes that you have already successfully use SITL on your machine following the instructions to setup SITL.

Installing GDB

To install GDB on Linux, please use package installer. If you are on a debian based system (such as Ubuntu or Mint), simply use the apt install command :

sudo apt install gdb

Setting up SITL

In order to use GDB, you need to configure your SITL build with debug symbols. Use :

./waf configure --debug

Raw GDB

This method use the command line gdb for debugging. There are 3 possible ways:

  • run SITL under gdb from the start.
gdb [gdb options] --args path-to-SITL-firmware(generally in build/sitl/bin) [SITL options]
  • run gdb with SITL launch script sim_vehicle.py : simply add -D -G to build and launch SITL with debug symbols and in gdb directly :
sim_vehicle.py -v ArduCopter -f quad --console --map -D -G

The SITL launch script also get some other feature already provided like launch gdb stopped, put some breakpoints, etc.

  • attach to already running SITL process. You can get the SITL process id with pidof [vehicle type : arducopter, arduplane, ardurover].
gdb path-to-binary(build/sitl/bin/) SITL-process-id

When gdb is launched you should be able to use it to debug ArduPilot like any other program. If you don’t know how to use gdb from commandline, please look on the net for some tutorial, a simple one can be found here. Don’t forget that you can crash you drone on SITL safely !

With IDE

For those that are not used to commandline, there are plenty ways to use gdb for debugging with GUI. Here are some.

For Ubuntu user, the default protections will prevent you to attach gdb to SITL from IDE : see here. This will lead to an error message ptrace: Operation not permitted on your first attempt to attach to a local process.

In this case, do one of the following:

  • To disable this restriction temporarily, enter the command:
echo 0 | sudo tee /proc/sys/kernel/yama/ptrace_scope
  • To disable this restriction permanently, open the /etc/sysctl.d/10-ptrace.conf file for editing and change the line kernel.yama.ptrace_scope = 1 to kernel.yama.ptrace_scope = 0. To apply the changes immediately, enter the above command. Alternatively, run sudo service procps restart or simply restart your system.

VS CODE

VS Code website

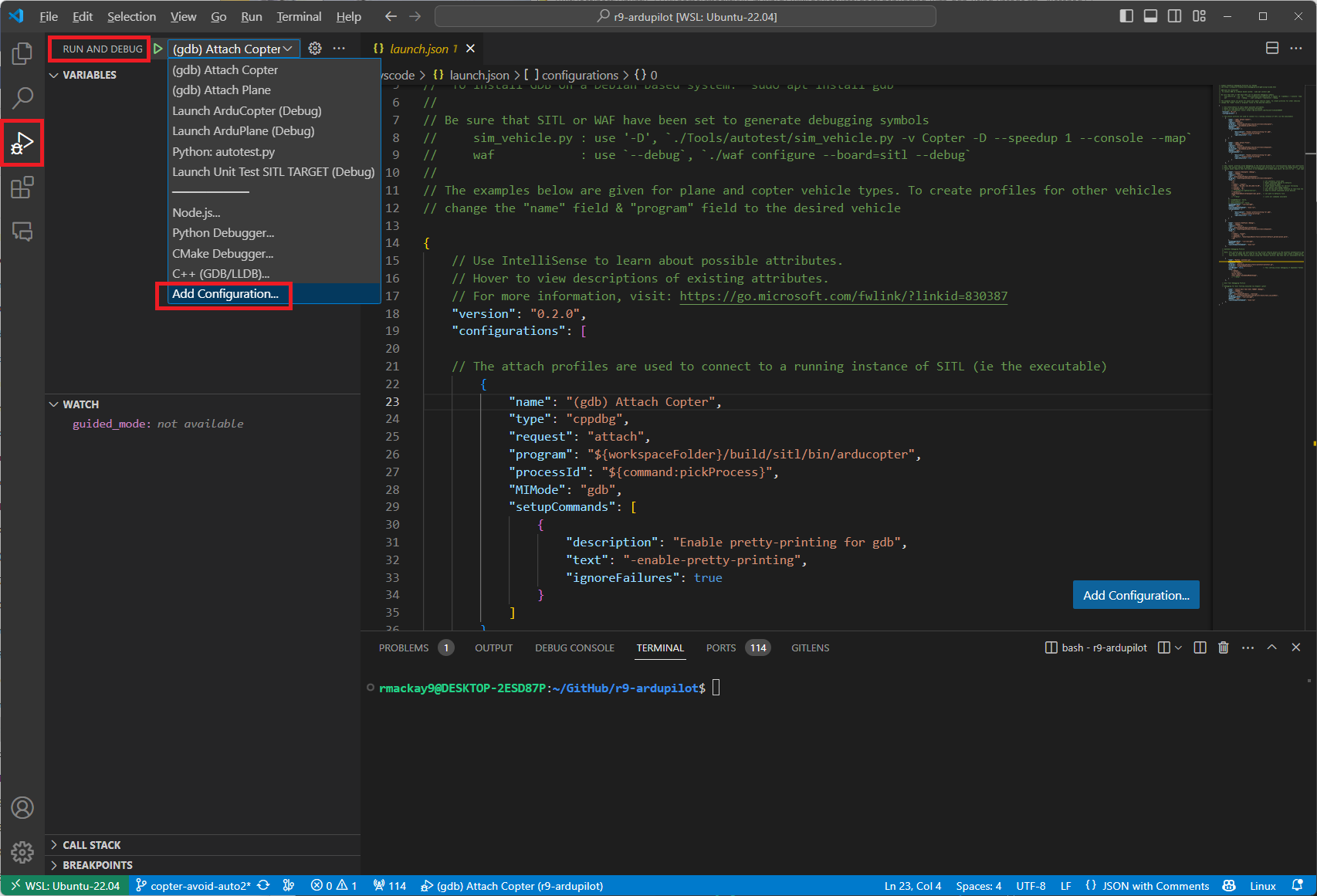

Open ArduPilot directory. Go in debug menu and then Add a configuration, it should open a launch.json file for debugging configuration. You should have a big Add a configuration button.

../_images/VSCode-config1.png

Click and select C/C++ : (gdb) Attach option.

../_images/VSCode-config2.png

Fill the “program” line with

"program": "${workspaceFolder}/build/sitl/bin/arducopter",
../_images/VSCode-config3.png

Or the other vehicle you want.

Launch SITL with launch script sim_vehicle.py : simply add -D to build and launch SITL with debug symbols :

sim_vehicle.py -v ArduCopter -f quad --console --map -D

And now start debugging with VSCode, it will ask you for a process name : type arducopter or the other vehicle name you want to debug.

../_images/VSCode-attach1.png

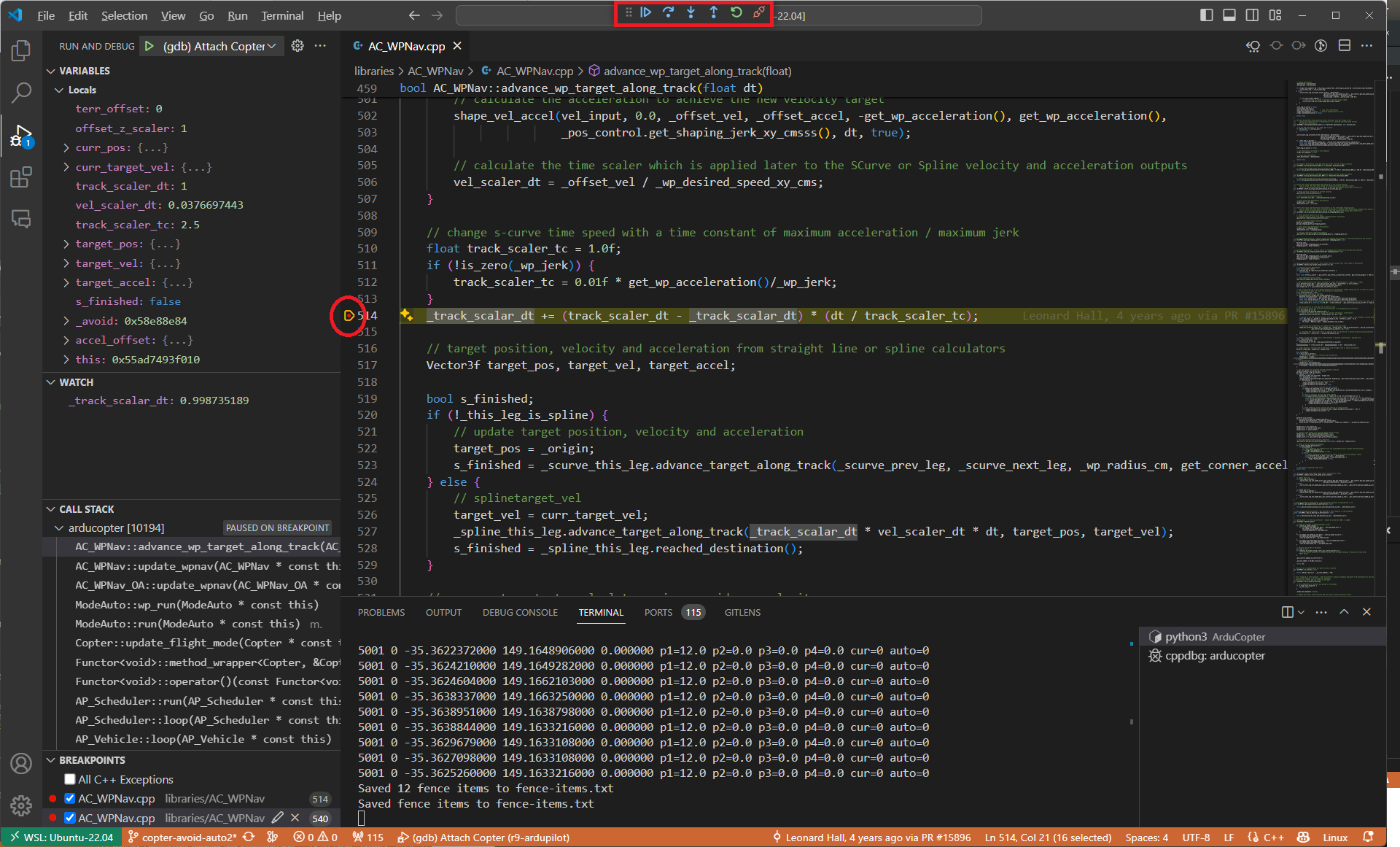

Now you can put breakpoint in the code and start debugging !

../_images/VSCode-debug.png

CLION

Jetbrains website Clion is a paid product, but free for student !

Open ArduPilot directory. Launch SITL with launch script sim_vehicle.py : simply add -D to build and launch SITL with debug symbols :

sim_vehicle.py -v ArduCopter -f quad --console --map -D

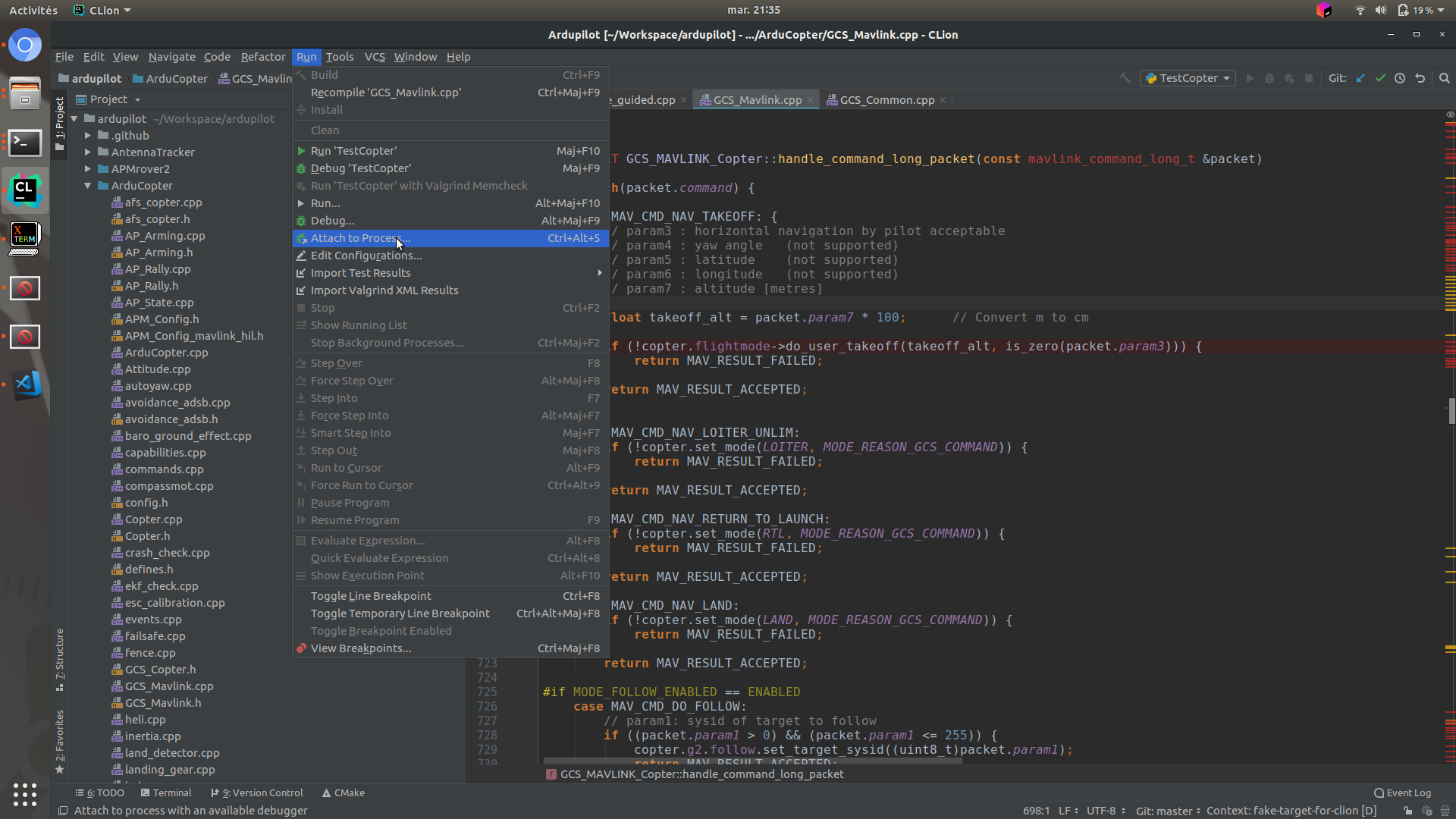

In Run menu, select Attach to Local Process...

../_images/Clion-attach1.png

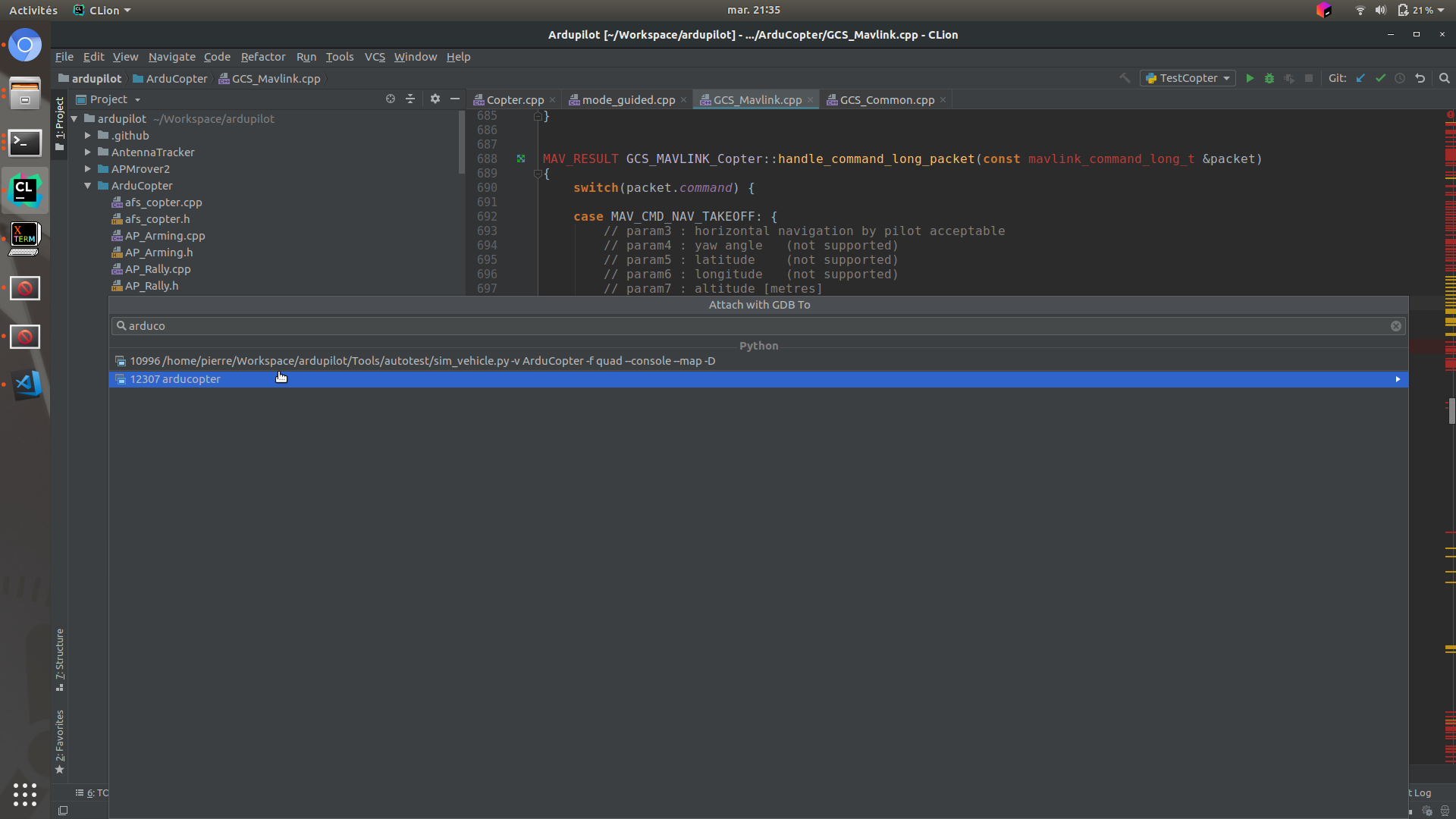

, and type arducopter or the other vehicle name you want to debug.

../_images/Clion-attach2.png

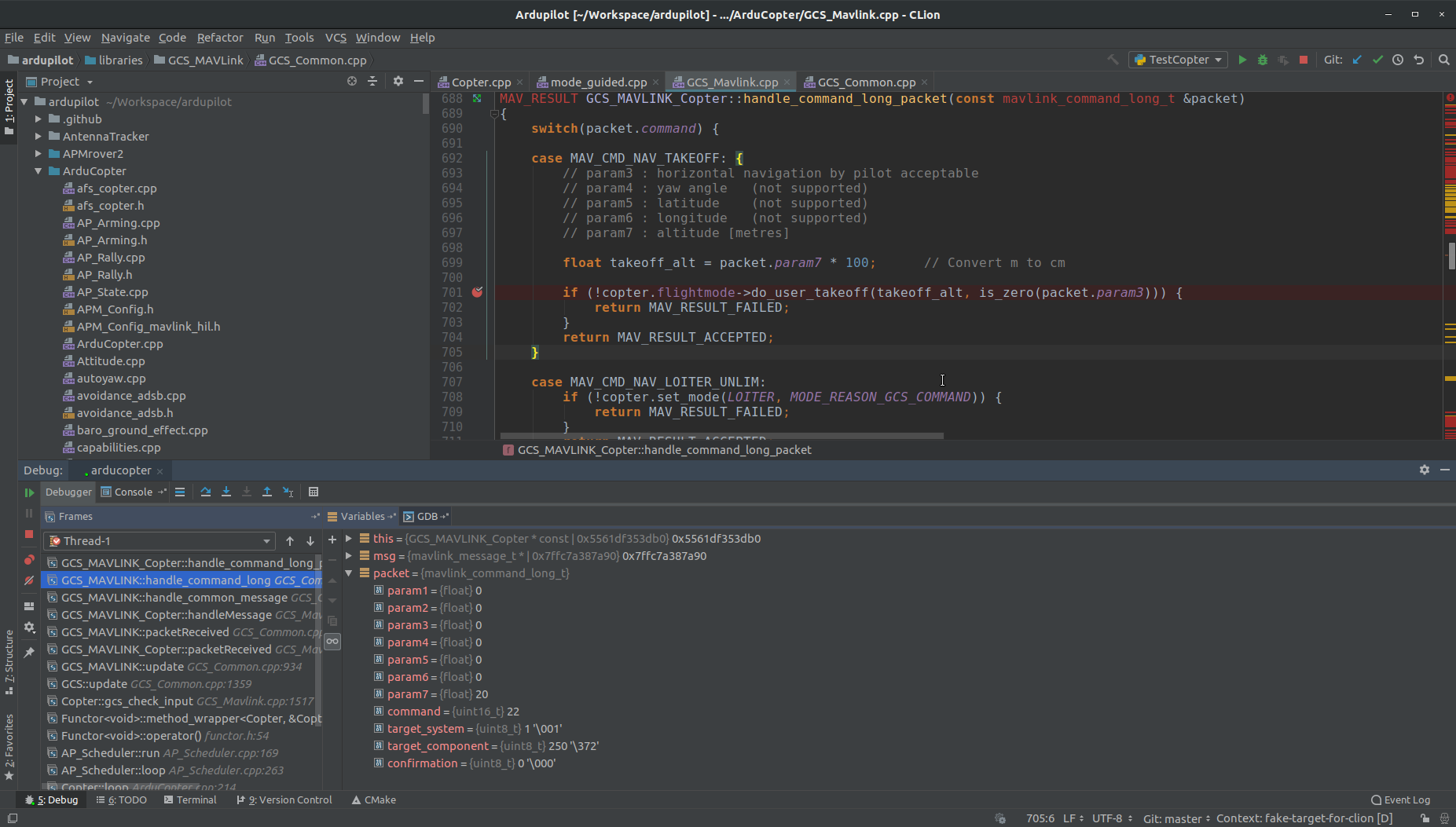

Now you can put breakpoint in the code and start debugging !

../_images/Clion-debug.png
