Adding a New Flight Mode to Copter 3.5 (and earlier)ΒΆ

This section covers the basics of how to create a new high level flight mode (i.e. equivalent of Stabilize, Loiter, etc) for Copter version 3.5 (or earlier). For newer versions see the main Adding a New Flight Mode page.

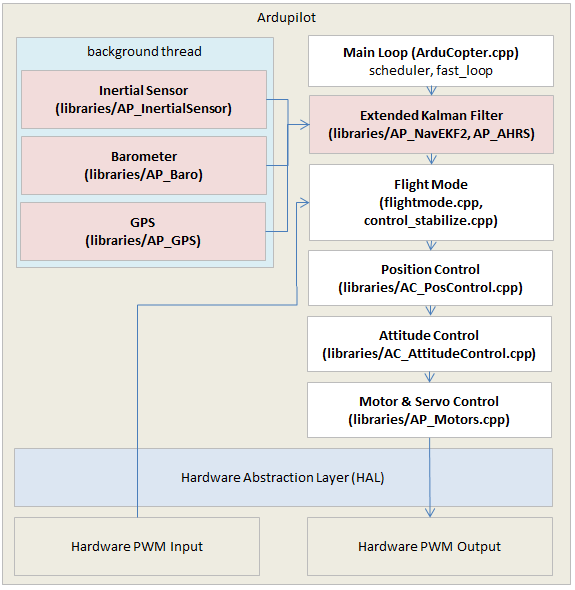

As a reference the diagram below provides a high level view of Copter’s architecture for ver 3.5 (and earlier)

../_images/copter-code-overview-architecture2.png
  1. Create the #define for the new flight mode in defines.h. and increase the NUM_MODES by 1.

    // Auto Pilot modes
    // ----------------
    #define STABILIZE 0 // hold level position
    #define ACRO 1 // rate control
    #define ALT_HOLD 2 // AUTO control
    #define AUTO 3 // AUTO control
    #define GUIDED 4 // AUTO control
    #define LOITER 5 // Hold a single location
    #define RTL 6 // AUTO control
    #define CIRCLE 7 // AUTO control
    #define LAND 9 // AUTO control
    #define OF_LOITER 10 // Hold a single location using optical flow sensor
    #define DRIFT 11 // DRIFT mode (Note: 12 is no longer used)
    #define SPORT 13 // earth frame rate control
    #define FLIP 14 // flip the vehicle on the roll axis
    #define AUTOTUNE 15 // autotune the vehicle's roll and pitch gains
    #define POSHOLD 16 // position hold with manual override
    #define NEWFLIGHTMODE 17                // new flight mode description
    #define NUM_MODES 18

  2. Create a new control_<new flight mode> sketch based on a similar flight mode such as control_stabilize.cpp or control_loiter.cpp. This new file should have an _init() function and _run() function.

    /// -*- tab-width: 4; Mode: C++; c-basic-offset: 4; indent-tabs-mode: nil -*-

    /*
     * control_newflightmode.cpp - init and run calls for new flight mode
     */

    // newflightmode_init - initialise flight mode
    static bool newflightmode_init(bool ignore_checks)
    {
        // do any required initialisation of the flight mode here
        // this code will be called whenever the operator switches into this mode

        // return true initialisation is successful, false if it fails
        // if false is returned here the vehicle will remain in the previous flight mode
        return true;
    }

    // newflightmode_run - runs the main controller
    // will be called at 100hz or more
    static void newflightmode_run()
    {
        // if not armed or throttle at zero, set throttle to zero and exit immediately
        if(!motors.armed() || g.rc_3.control_in <= 0) {
            attitude_control.relax_bf_rate_controller();
            attitude_control.set_yaw_target_to_current_heading();
            attitude_control.set_throttle_out(0, false);
            return;
        }

        // convert pilot input into desired vehicle angles or rotation rates
        //   g.rc_1.control_in : pilots roll input in the range -4500 ~ 4500
        //   g.rc_2.control_in : pilot pitch input in the range -4500 ~ 4500
        //   g.rc_3.control_in : pilot's throttle input in the range 0 ~ 1000
        //   g.rc_4.control_in : pilot's yaw input in the range -4500 ~ 4500

        // call one of attitude controller's attitude control functions like
        //   attitude_control.angle_ef_roll_pitch_rate_yaw(roll angle, pitch angle, yaw rate);

        // call position controller's z-axis controller or simply pass through throttle
        //   attitude_control.set_throttle_out(desired throttle, true);
    }

  3. Add declarations in Copter.h for the new _init() function and _run() functions:

    bool newflightmode_init(bool ignore_checks);
    void newflightmode_run();

  4. Add a case for the new mode to the set_mode() function in flight_mode.cpp to call the above _init() function.

    // set_mode - change flight mode and perform any necessary initialisation
    static bool set_mode(uint8_t mode)
    {
        // boolean to record if flight mode could be set
        bool success = false;
        bool ignore_checks = !motors.armed();   // allow switching to any mode if disarmed.  We rely on the arming check to perform

        // return immediately if we are already in the desired mode
        if (mode == control_mode) {
            return true;
        }

        switch(mode) {
            case ACRO:
                #if FRAME_CONFIG == HELI_FRAME
                    success = heli_acro_init(ignore_checks);
                #else
                    success = acro_init(ignore_checks);
                #endif
                break;

            case NEWFLIGHTMODE:
                success = newflightmode_init(ignore_checks);
                break;
        }
    }

  5. Add a case for the new mode to the update_flight_mode() function in flight_mode.cpp to call the above _run() function.

    // update_flight_mode - calls the appropriate attitude controllers based on flight mode
    // called at 100hz or more
    static void update_flight_mode()
    {
        switch (control_mode) {
            case ACRO:
                #if FRAME_CONFIG == HELI_FRAME
                    heli_acro_run();
                #else
                    acro_run();
                #endif
                break;
            case NEWFLIGHTMODE:
                success = newflightmode_run();
                break;
        }
    }

  6. Add the string to print out the flight mode to the print_flight_mode() function in flight_mode.cpp.

    static void
    print_flight_mode(AP_HAL::BetterStream *port, uint8_t mode)
    {
        switch (mode) {
        case STABILIZE:
            port->print_P(PSTR("STABILIZE"));
            break;
        case NEWFLIGHTMODE:
            port->print_P(PSTR("NEWFLIGHTMODE"));
            break;

  7. Add the new flight mode to the list of valid @Values for the FLTMODE1 ~ FLTMODE6 parameters in Parameters.cpp.

    // @Param: FLTMODE1
    // @DisplayName: Flight Mode 1
    // @Description: Flight mode when Channel 5 pwm is 1230, <= 1360
    // @Values: 0:Stabilize,1:Acro,2:AltHold,3:Auto,4:Guided,5:Loiter,6:RTL,7:Circle,8:Position,9:Land,10:OF_Loiter,11:ToyA,12:ToyM,13:Sport,17:NewFlightMode
    // @User: Standard
    GSCALAR(flight_mode1, "FLTMODE1",               FLIGHT_MODE_1),

    // @Param: FLTMODE2
    // @DisplayName: Flight Mode 2
    // @Description: Flight mode when Channel 5 pwm is >1230, <= 1360
    // @Values: 0:Stabilize,1:Acro,2:AltHold,3:Auto,4:Guided,5:Loiter,6:RTL,7:Circle,8:Position,9:Land,10:OF_Loiter,11:ToyA,12:ToyM,13:Sport,17:NewFlightMode
    // @User: Standard
    GSCALAR(flight_mode2, "FLTMODE2",               FLIGHT_MODE_2),

  8. Raise a request in the Mission Planner’s Issue List if you wish the new flight mode to appear in the Mission Planner’s HUD and Flight Mode set-up.

    ../_images/FlightMode.jpg
